TAD Micro Evolution One TX Bookshelf Speaker

TAD Micro Evolution One TX Bookshelf Speaker

$38,000.00

Sold out

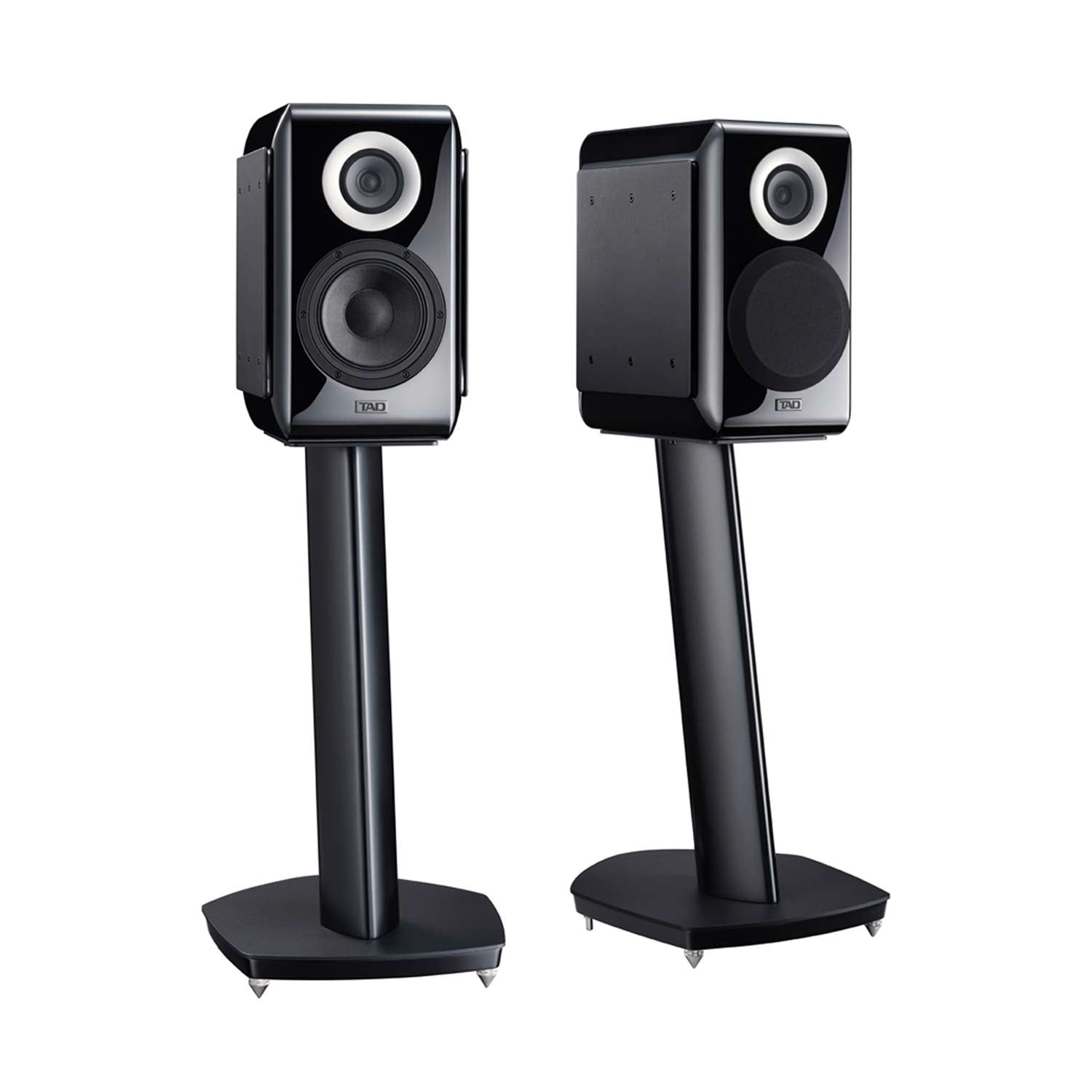

Colour: Black

Black

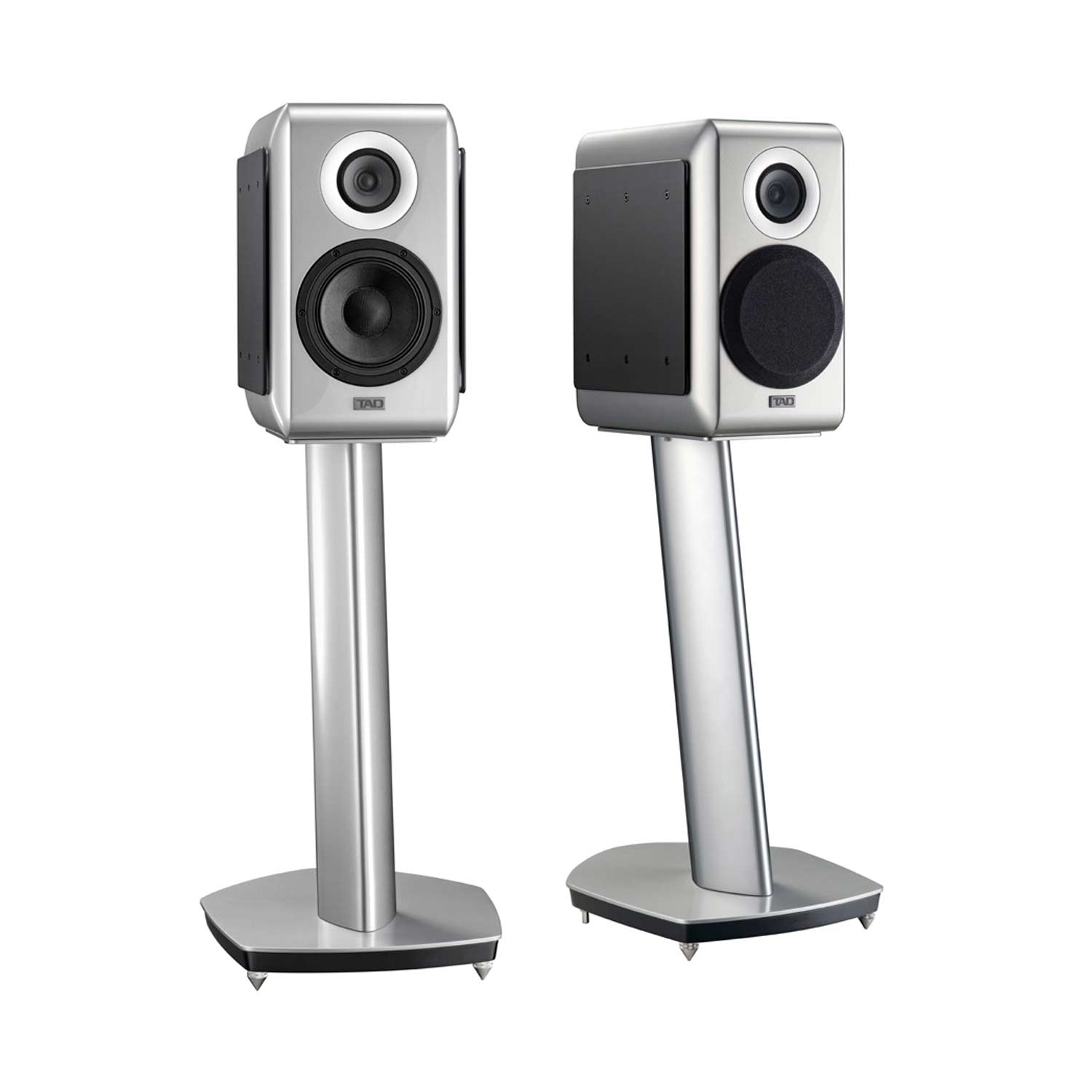

Silver

Product variants

The TAD-Micro Evolution One TX(ME1TX) takes over from the critically acclaimed TAD-ME1, which was introduced in 2016. A host of refinements are incorporated into the TAD-ME1TX to achieve enhanced audio performance, including a tweeter that features a beryllium diaphragm manufactured using TAD's proprietary vapor-deposition technique, just like those found in their higher-end speakers.

Specifications

Type: 3-way, bass-reflex bookshelf
Woofer: 16 cm cone
Midrange and Tweeter: Concentric 9 cm midrange and 2.5 cm dome tweeter
Frequency Response: 36 Hz to 60 kHz
Crossover Frequencies: 420 Hz and 2.5 kHz
Sensitivity: 85 dB (2.83 V @ 1 m)
Maximum Input Power: 150 W
Rated Impedance: 4 Ω
Unit Polarity: LF (+), MF (+), HF (+)
Dimensions: 254 mm (W) x 411 mm (H) x 402 mm (D)
Weight: 21 kg

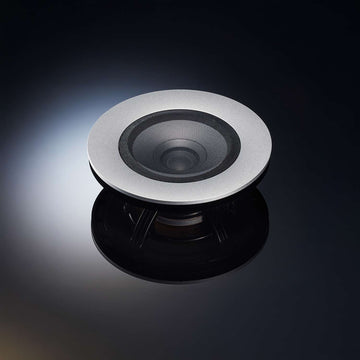

CST driver delivers ideal single-point-source sound

The TAD-ME1TX boasts TAD’s proprietary CST driver, which controls the directivity of the midrange and tweeter over an extended frequency range from the point of matching phase. TAD-ME1TX’s 9 cm CST driver achieves clear and solid imaging, as well as natural sound-field reproduction. The midrange cone controls the directional characteristic of the tweeter to bring the phase and directivity of their output in line in the crossover region.

Tweeter features a beryllium diaphragm

The TAD-ME1TX features a lightweight, rigid 25mm beryllium tweeter diaphragm, made with TAD’s vapor deposition technique. Using their HSDOM optimisation method, vibrations are controlled allowing for clear, wide-range sound reproduction up to 60 kHz.
