German manufacturer, WBT has provided some of the best connectors for the high-end audio industry for the past 20+ years. WBT's latest generation of nextgen™ banana plugs are no exception.
Note: Price is for a pack of 4 connectors. Red and white colour coding is available.
Couldn't load pickup availability
Free Shipping for orders $500+
• Cable cross section (max.): 10 mm² (7 AWG)
• Termination technique: Crimping
• Identification: red, white or black
• Strain relief: Torx screw (T.6)

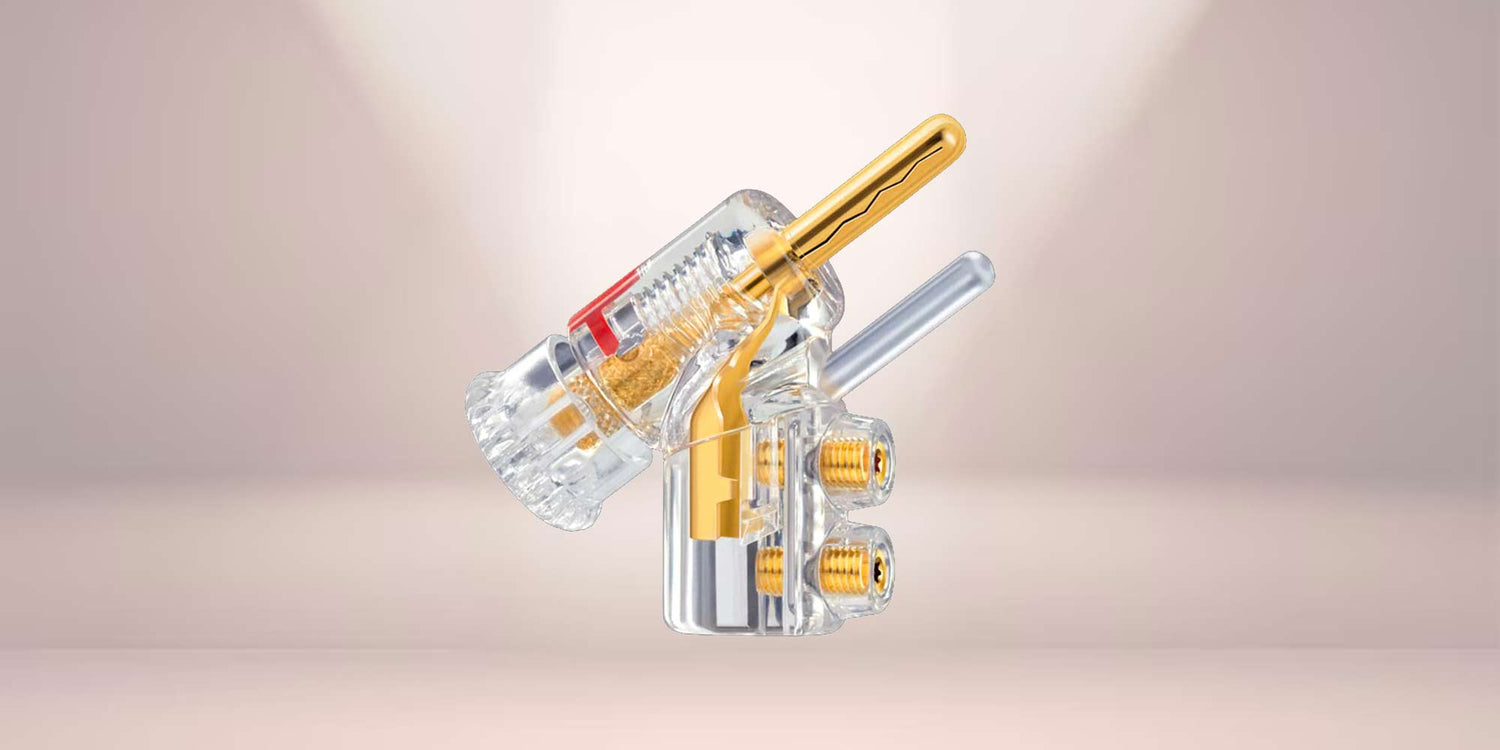

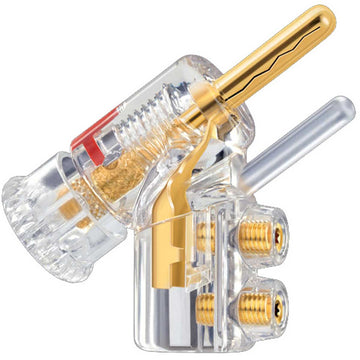

Designed after the WBT 0645 angled plug, the WBT 0610CU banana plug enhances overall performance by utilising pure copper for the signal connection. It is fully insulated using Makrolon®, a product of the nextgen™ family.
A secure connection is possible through an expanding inner spike which provides high clamping power. While using only one hand, cables can be connected in tight spaces with just thumb and forefinger.
All of these enhancements in WBT's nextgen™ family successfully combine to provide solid contact and improve signal flow, thus providing more detail.
Extremely compact, sloping angle is easy on cable and equipment. Two Torx™ screws for extra tight pressure connection and additional cable strain relief. Connector can accommodate a cable diameter size of 10mm² / 8 AWG.
Delicately formed from pure copper - the signal line for the new nextgen™ banana plug WBT-0610 Cu. Directly gold plated in a nickel-free finish to prevent oxidation. This ensures high conductivity and no magnetic interferences. The contact pin is shaped so that its three segments expand as the spindle is twisted in, so that it can be secured in every terminal type. The resulting constantly high contact pressure guarantees permanently low transition resistances.
Like the WBT-0645, the nextgen™ banana connector also takes up less space when installed and allows equipment to be set up more compactly when space is at a premium. WBT-0610 Cu is also cable-friendly: the angle leads your cable directly to the ground and cannot be damaged through kinking.
Despite the delicacy of the signal conductor, WBT-0610 is perfectly suited to the crimping technique. The two Torx screws are used to fix the crimped cable end and the second screw secures your cable to prevent strain. Thanks to the full insulation it is safe to touch and thus IEC compliant. The safety pin also prevents accidental insertion of the plug into a power socket. This makes the WBT-0610 Cu compliant to CE to the full as well.
