Accuphase DP-770 SACD / CD Player

Name: Accuphase DP-770 SACD / CD Player
Brand: Accuphase
Availability: OutOfStock

Product variants

A Reference-Grade SACD Player

The Accuphase DP-770 is a reference-grade SACD player designed to deliver the ultimate in digital audio playback. This player is ideal for those who demand the highest levels of sound quality and precision.

Featuring a high-precision clock generator and a rigid chassis, the DP-770 ensures accurate data retrieval and minimal jitter. The player is compatible with both SACD and CD formats, allowing you to enjoy a wide range of music sources.

Availability

Specifications

Transport section

Compatible disc formats: 2-channel Super Audio CD, CD, DSD disc (DVD-R/-RW/+R/+RW DSF file format), Data disc ( CD-R/-RW, DVD-R/-RW/+R/+RW, Supported formats: WAV, FLAC, DSF, DSDIFF)

Data read method: Non-contact optical pickup

Laser diode wavelength: SA-CD - 650 nm, CD - 790nm

EXT DSP: HS-LINK Connector type: RJ-45. COAXIAL Format: IEC 60958 compliant.

Digital processor section

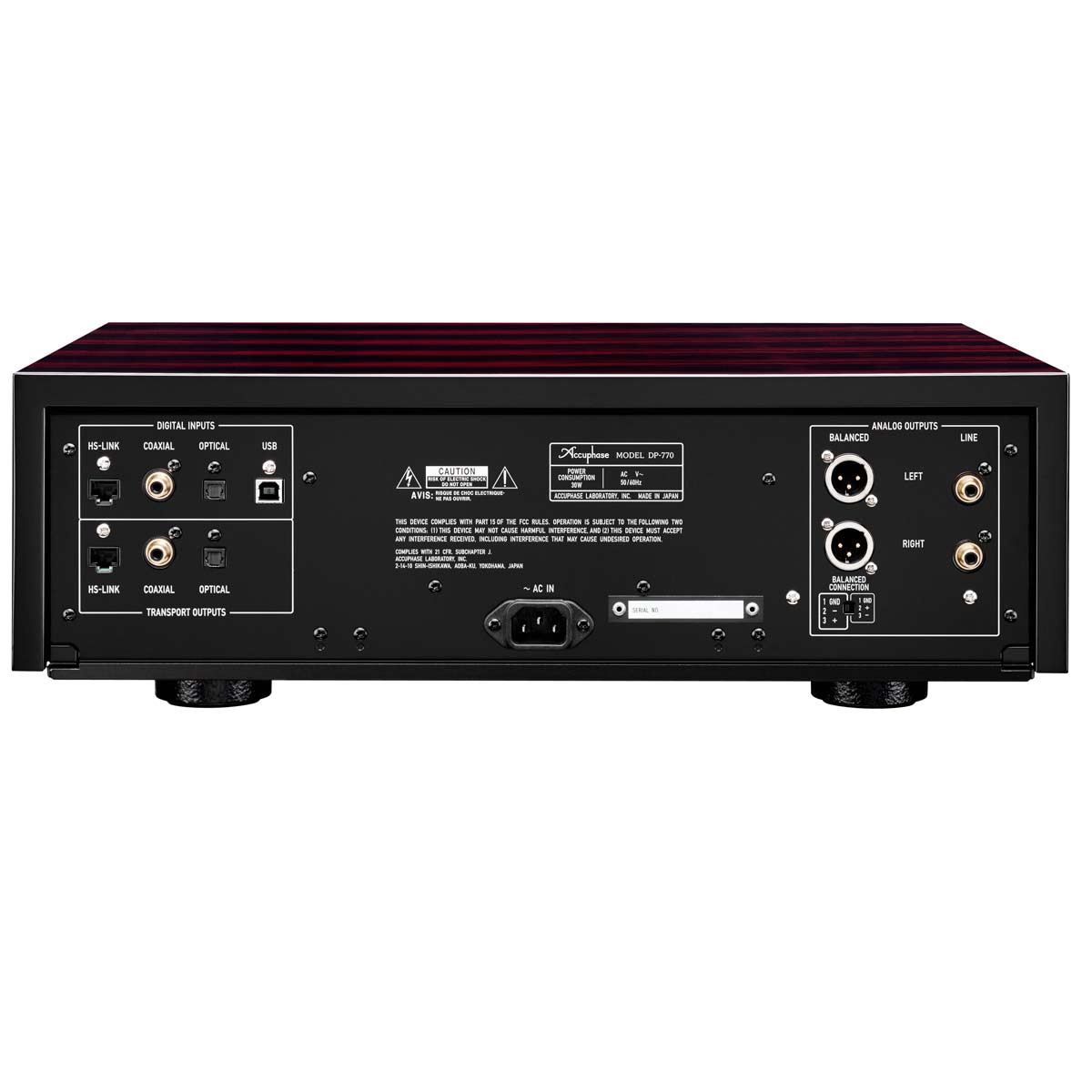

Digital inputs: HS LINK: Connector type: RJ-45. COAXIAL Format: IEC 60958 compliant. OPTICAL Format: JEITA COMPUTER-1212 compliant. USB Format: USB 2.0 Hi-Speed (480 Mbps) compliant

EXT DSP: HS LINK: Connector type: RJ-45. SA-CD: 2.8224 MHz/1bit DSD. CD: 44.1kHz/16 bit PCM. COAXIAL: Format: IEC 60958 compliant. CD: 44.1kHz/16 bit PCM.

Sampling frequencies: HS LINK: 32 kHz to 192 kHz (2-channel PCM). 2.8224 mHz/1bit (2-channel DSD). USB, COAXIAL: 32 kHz to 192 kHz/24 bit (2-Channel PCM). OPTICAL: 32 kHz - 96 kHz/24 bit (2-Channel PCM)

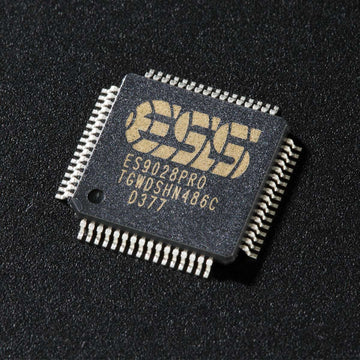

D/A converter: 8MDS++ type

Frequency response: 0.5 - 50,000 Hz +0, -3 dB

Total harmonic distortion: Max. 0.0004% (20 - 20,000 Hz, 24-bit input)

Signal-to-noise ratio: 121 dB or better

Dynamic range: 119 dB (24-bit input, low pass filter off)

Channel separation: 118 dB (20 to 20,000 Hz)

Output voltage and impedance: BALANCED: 2.5 V, 50 ohms, balanced XLR type, LINE: 2.5 V, 50 ohms, RCA type phono jack

Output level control: 0 to -80 dB in 1-dB steps (digital type)

General

Power requirements: 120/220/230 V AC, 50/60 Hz (Voltage as indicated on rear panel)

Power consumption: 30 W, standby: 0.3 W

Max. dimensions: Width 477 mm, Height 156 mm, Depth 395 mm

Mass: 28.5 kg net, 36.0 kg in shipping carton

Advanced technology for accurate information retrieval

The DP-770 is also equipped with a high-quality digital-to-analog converter (DAC) that ensures precise conversion of digital signals to analog audio. The player's balanced design and premium components guarantee exceptional performance and durability.

Near silent operation

Even very slight eccentricities or warping of media discs often can lead to various types of vibrations and wind noise when spinning at high speed. The viscous dampers of the DP-770 prevent the propagation of such vibrations, and the large bridge covering the disc cuts down on wind noise. As a result, operation noise is reduced to about one half as compared to earlier designs, making listeners forget that there is a rotating mechanism at all.

Silky smooth loading

The disc loading mechanism features a dual stay construction with steel bearings for the shafts. This ensures that the aluminum disc tray opens and closes with a super-quiet and smooth motion

Who is this for?

The Accuphase DP-770 is designed for discerning audiophiles who want a true reference-level digital source capable of extracting the absolute maximum performance from CD and SACD playback. It suits listeners with carefully assembled high-end systems who value tonal realism, low-noise transparency, and the effortless musical flow that separates exceptional digital playback from the ordinary.

This player is particularly well suited to premium integrated amplifiers or full separates systems paired with revealing loudspeakers in dedicated listening environments. Its advanced DAC architecture and transport design reward systems with high resolving power, uncovering subtle texture, depth, and dynamic nuance that lesser sources often miss.

The DP-770 appeals strongly to collectors with extensive SACD and CD libraries who still value the ritual and ownership experience of physical media. It delivers a refined, analogue-like presentation that encourages long listening sessions without fatigue, making it especially rewarding with acoustic music, vocals, jazz, and classical recordings.

At Soundline, products like the DP-770 are often demonstrated within complete reference systems, allowing listeners to experience just how much influence a truly high-end digital source can have on overall system performance. For customers building a long-term “destination” system, the DP-770 represents one of the finest disc players available today.
