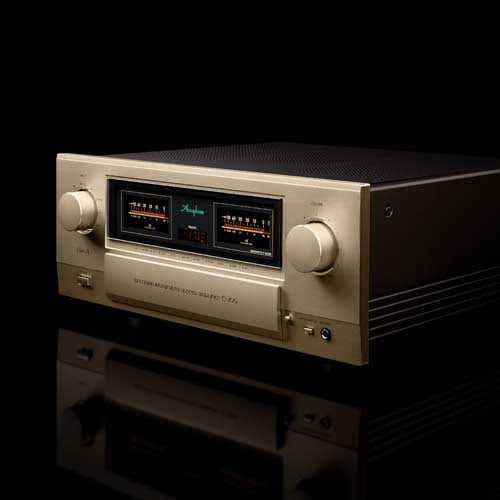

Accuphase E-700 Class A Integrated Amplifier

Accuphase E-700 Class A Integrated Amplifier

Name: Accuphase E-700 Class A Integrated Amplifier
Brand: Accuphase
Availability: InStock

Product variants

The Accuphase E-700 Integrated Amplifier is a masterful blend of innovation and elegance, making it a standout choice for discerning audiophiles. Building on the renowned E-650, this latest Class A amplifier delivers an even richer and more immersive listening experience. With its exquisite design enhancements, including a refined gold trim and robust controls, the E-700 is not just an amplifier, but a piece of art. Its ability to drive large, demanding speakers with ease, combined with the remarkable low noise floor and dynamic range, ensures every note is delivered with pristine clarity and depth. Whether you're filling a large room or creating an intimate soundscape, the E-700 excels, providing unparalleled power and detail that will satisfy even the most critical ears. Discover a new level of audio excellence with the Accuphase E-700, where superior engineering meets aesthetic perfection.

Availability

Specifications

Rated Continuous Average Output Power (both channels operating simultaneously, 20 - 20,000 Hz): 150 W/ch 1-ohm load (music signal only), 140 W/ch 2-ohm load, 70 W/ch 4-ohm load, 35 W/ch 8-ohm load

Total Harmonic Distortion (both channels operating simultaneously, 20 - 20,000 Hz): 0.05% 2-ohm load, 0.03% 4 to 16 ohm load

Intermodulation Distortion: 0.01%

Frequency Response: HIGH LEVEL INPUT, At rated continuous average output: 20 - 20,000 Hz ＋0, –0.5 dB, MAIN IN, At rated continuous average output: 20 - 20,000 Hz ＋0, –0.2 dB, At 1 watt output:3 - 150,000 Hz ＋0, –3.0 dB

Damping Factor: 1000 (with 8-ohm load, 50 Hz)

Input sensitivity and impedance (rated output/1W output/Impedance): High Level input -77.7mV/14.2mV/20kΩ, Balanced Input -77.7mV/14.2mV/40kΩ, Main In Line-0.617V/113mV/20Ω, Main In Balanced -0.617V/113mV/40kΩ

Output Voltage and Impedance: PRE OUTPUT 0.617 V, 50 ohms (at rated continuous average output)

Gain: HIGH LEVEL INPUT → PRE OUTPUT :18 dB, MAIN IN → OUTPUT: 28 dB

Tone Controls - Turnover frequency and adjustment range: BASS; 300 Hz ±10 dB (50 Hz),TREBLE; 3 kHz ±10 dB (20 kHz)

Loudness compensator: ＋6dB（100 Hz)

Attenuator: ─20 dB

S/N Ratio, Input-converted Noise (SN ratio at rated output/SN ratio EIA): High level Input - 102dB/97dB, Balanced input - 102dB/97dB, Main In - 117dB/101dB

Bar Meter: Represents output voltage value (dB) using 26 points With meter on/off switching function

Output Load Impedance: 2 to 16 ohms

Stereo Headphones Suitable impedance: 8 ohms or higher

Power Requirements: 230v AC, 50Hz

Dimensions (WxHxD, mm): 465 x 191 x 428

Weight: 25.3kg net, 32kg shipped

The Accuphase E-700 is an exceptional performer. It has authority, power, dynamics, rhythmic energy, and grip while offering subtlety and inner detail where it is needed.

HiFi+

Features

The E-700 has a Pure Class A operation (35 watts into 8 ohms). Guaranteed linear power: 120 watts into 2 ohms, 60 watts into 4 ohms, 30 watts into 8 ohms; and the preamplifier and power amplifier sections can be used separately.

Balanced AAVA volume control

One of the key features of the E700 is its Dual Balanced AAVA volume control system. AAVA stands for "Accuphase Analog Vari-gain Amplifier," which is a proprietary technology that provides precise and accurate volume control with minimal noise and distortion. The Dual Balanced AAVA system uses two separate AAVA circuits for left and right channels, which helps to maintain perfect channel balance and stereo imaging.

Output stage with power MOS-FETs in triple parallel push-pull configuration

Triple parallel push-pull output stage with power MOS-FETs and power amplifier stage mounted on a large heat sink. Two identical units are arranged on the left and right sides of the chassis.

Balanced I/O

Instrumentation amplifier principle in power amplifier for fully balanced signal transmission, complemented by MCS+ topology and current feedback amplification circuitry.

Strong power supply with massive high-efficiency toroidal transformer and large filtering capacitors.

The E-700 uses a massive power transformer with high output capability. Highly effective filtering is realized with two custom-made aluminum electrolytic capacitors, each with a large 56,000 μF rating.

HiFi+

The Accuphase E-700 is an exceptional performer. It has authority, power, dynamics, rhythmic energy, and grip while offering subtlety and inner detail where it is needed. When someone really hits a tom or snare, the E-700 conveys its impact and delights the listener with subtle insights into a delicate cymbal line or the technique and style of a skilled guitarist or sax player.

Who is this for?

The Accuphase E-700 is perfect for listeners drawn to the purity and intimacy of Class-A amplification. It suits music lovers who prioritise tonal richness, soundstage depth, and long listening sessions free from fatigue.

Its beautifully smooth and organic presentation pairs exceptionally well with high-resolution speakers in small to medium-sized listening rooms. The E-700 excels with vocals, jazz, acoustic music, and classical recordings where texture and realism are especially important.

For customers seeking a refined, emotionally engaging listening experience with the unmistakable character of pure Class-A sound, the E-700 is a deeply rewarding amplifier.
