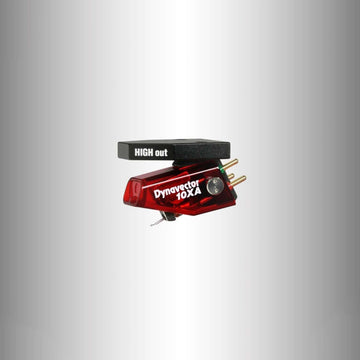

Dynavector DV 10XA-H MC Phono Cartridge

Dynavector DV 10XA-H MC Phono Cartridge

Name: Dynavector DV 10XA-H MC Phono Cartridge
Brand: Dynavector Japan
Price: 1300.00 NZD
Availability: InStock

$1,300.00

Sold out

Product variants

The Dynavector 10X series is a high output Moving Coil (MC) Cartridge that has been acclaimed worldwide since its release in 1978, amazing the audio industry by unleashing something that was long considered a challenge for MC cartridges.

Now, the 10X series reaches new heights of performance with a newly developed magnetic circuit that incorporates Dynavector's proprietary "Special Magnetic Annealing" technology. The new 10XA model delivers exceptionally smooth and articulate analog playback, offering a listening experience that goes far beyond what is expected from an entry-level cartridge.

Quantity

Free Shipping for orders $500+

Ask a question

Specifications

Type: High/Low output moving coil cartridge with flux damper and softened magnetism
Output Voltage: 2.8 mV / 0.5 mV (at 1KHz, 5cm/sec.)
Channel Separation: 25 dB (at 1KHz)
Channel balance: 1.0 dB (at 1KHz)
Frequency response: 20 - 20,000 Hz（±2dB）
Compliance: 12 mm/N
Tracking force: 1.8 - 2.2 g
Impedance: 150 ohms / 32 ohms
Recommended load impedance: 1,000 ohms / > 100 ohms
Cantilever: 6mm length hardened aluminium pipe
Stylus tip: Nude Diamond "Shibata III" Line Contact
Weight: 7.5 g

Delivers exceptionally smooth and articulate analog playback

Dynavector

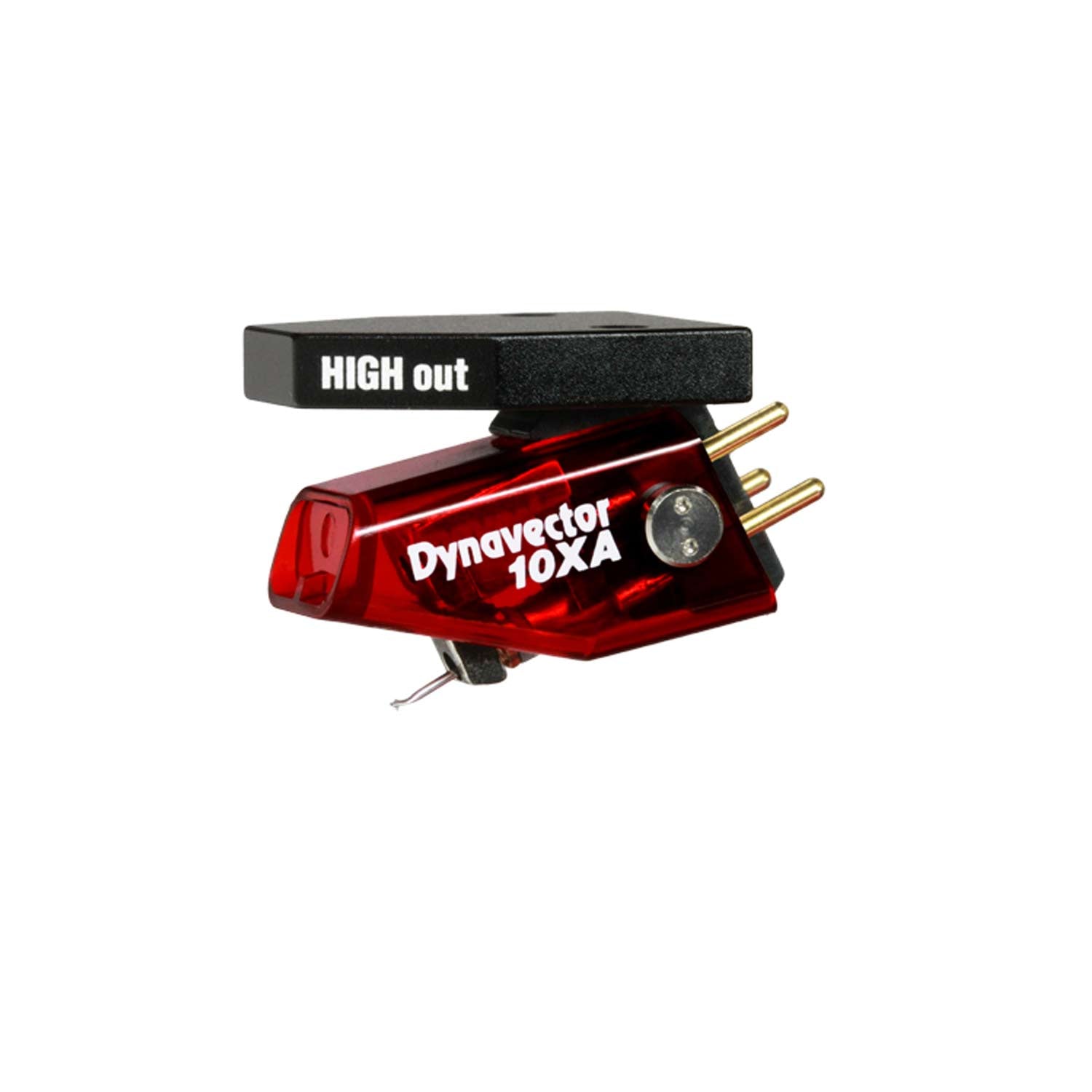

10XA-H: The Legendary High Output MC Cartridge

Dynavector's unique coil winding technology made high output MC cartridges possible. By winding an ultra-fine wire many times around the coil bobbin, the phono cartridge can retain a healthy 2.8mV output, eliminating the need for a head amplifier or a step-up transformer. It retains the sonic advantages of an MC cartridge while offering the ease of use of an MM cartridge.
Recommended load impedance is 1,000Ω or higher.
Connection to a PHONO input in MM position (47KΩ load) is also possible.

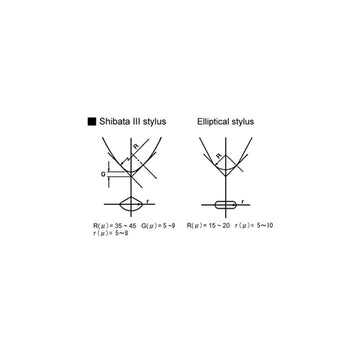

Shibata Type III Stylus for Exceptional High Frequency Performance

To meet the demands of today's wide range analog playback systems, the 10XA features a Shibata Type III stylus, known for its superior high-frequency response. The cantilever is made from lightweight, rigid aluminum pipe. This improves groove tracking significantly, enabling higher resolution playback.
