James Loudspeaker Visual Experience Level 3 Ceiling Speakers

James Loudspeaker Visual Experience Level 3 Ceiling Speakers

James Loudspeaker Visual Experience Level 3 Ceiling Speakers

$1,049.00

Sold out

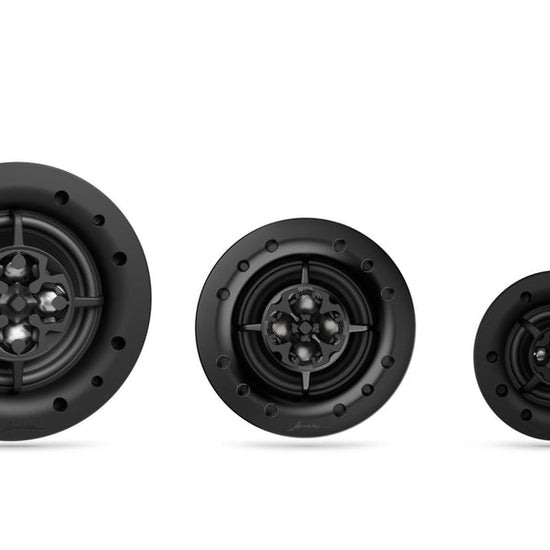

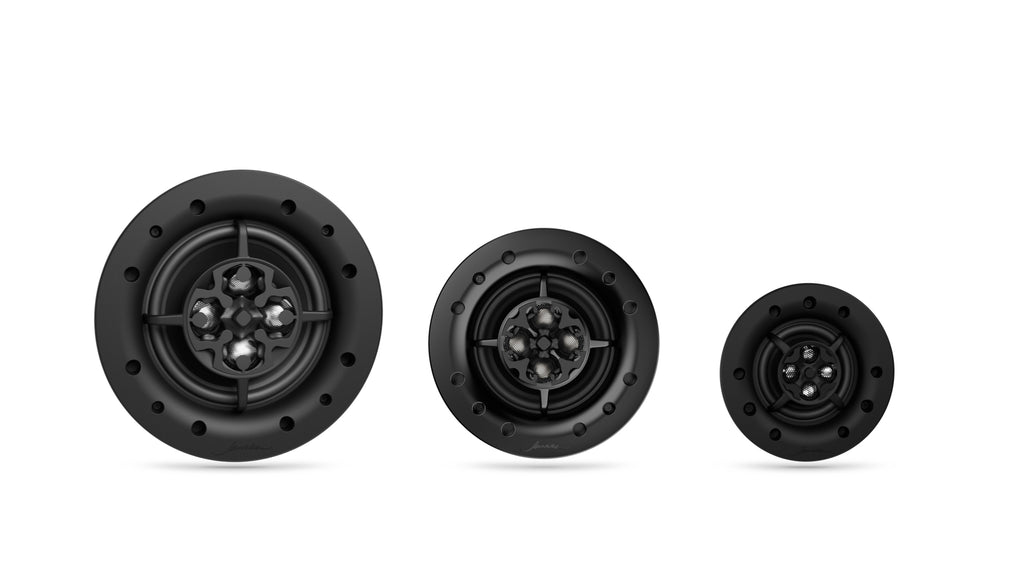

Size: Small - VX48R

Small - VX48R

Medium - VX68R

Large - VX88R

Product variants

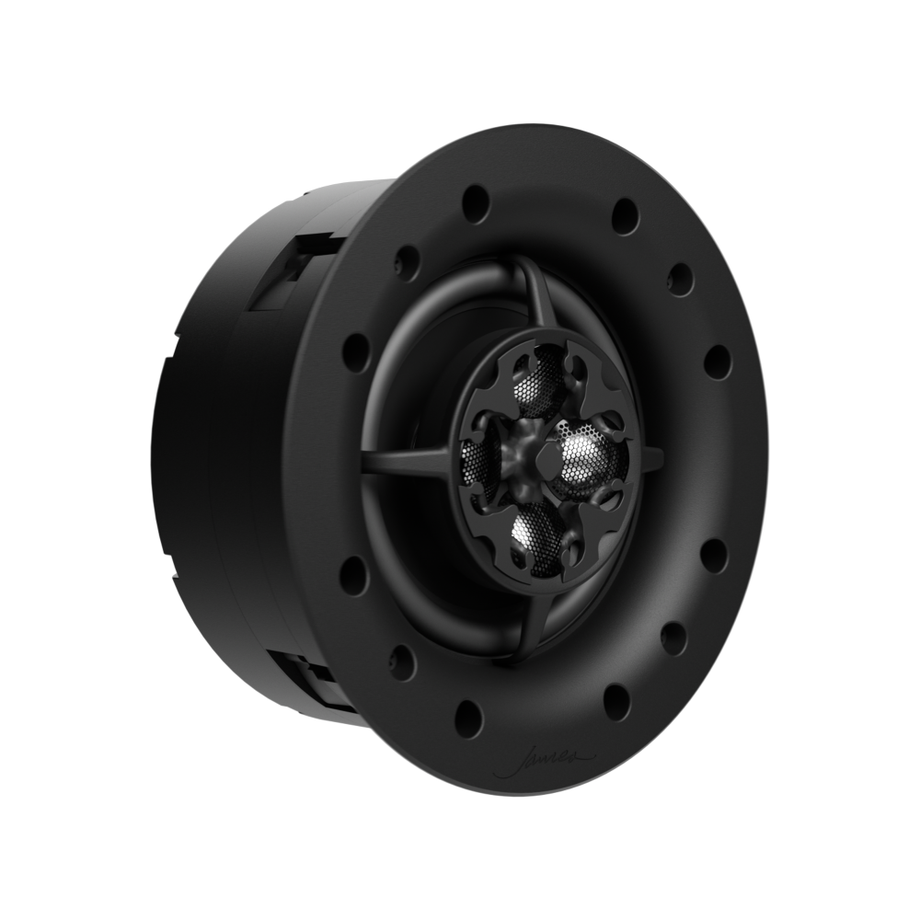

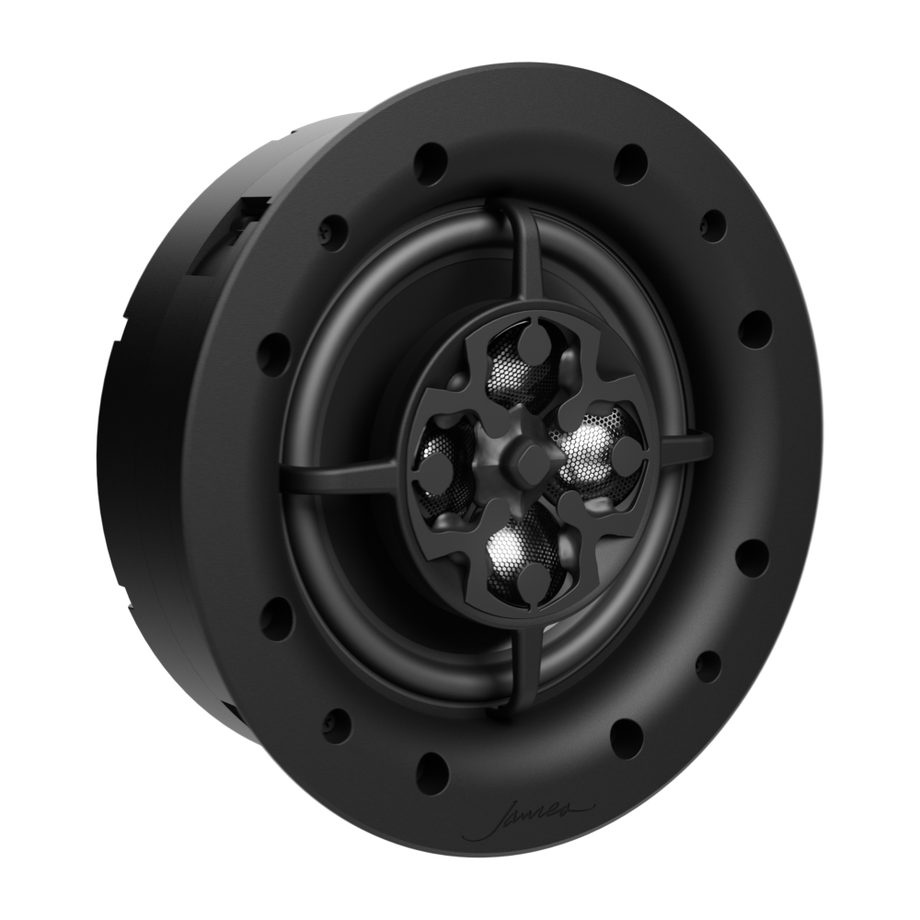

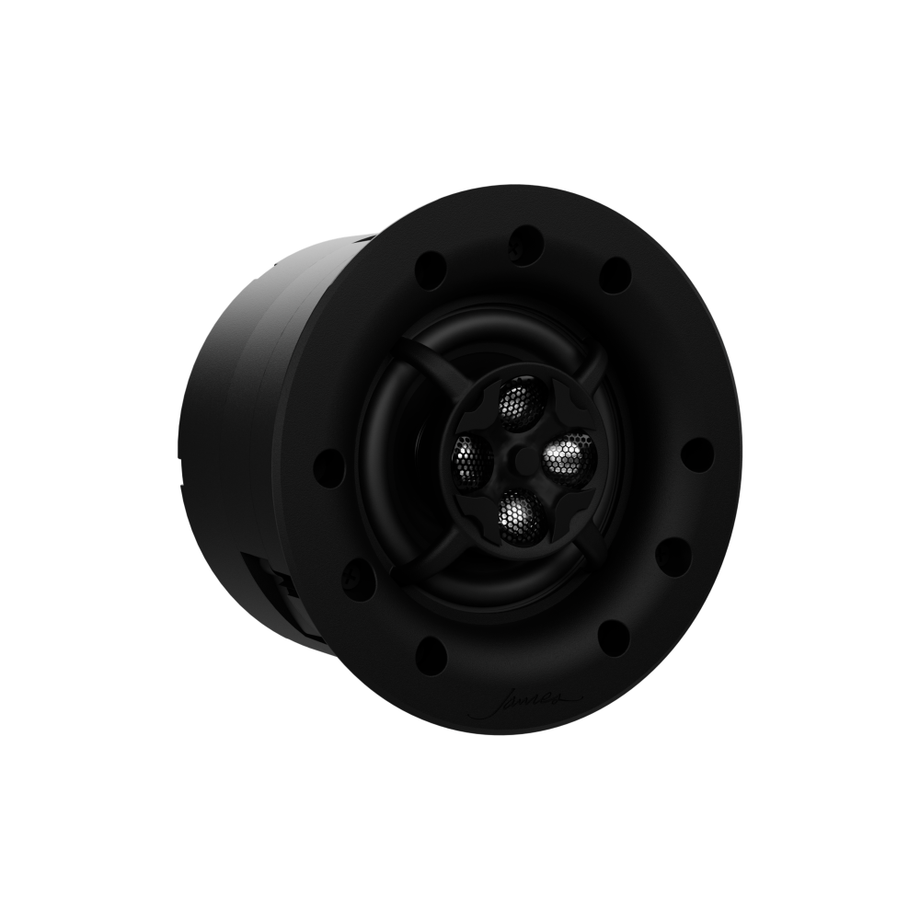

Visual Experience with Quadratech Series offers premium performance, featuring a specially engineered Quadratech Tweeter and Cymatic Diffuser for exceptional audio detail. Rated IP67 for durability, they excel for in-ceiling applications.

Ask a question

Specifications

VXQ48R

Speaker Tweeter: .50" (12mm) Four titanium domes, Ferrofluid-cooled, acoustic back chamber
Speaker Woofer: 4.5" (114mm) Aluminum cone, Santoprene surround
Frequency Response (+/- 3db): 50Hz - 20kHz
Power Handling (RMS): 5 watts minimum; 100 watts maximum
Sensitivity: 90dB (2.83V/1m)

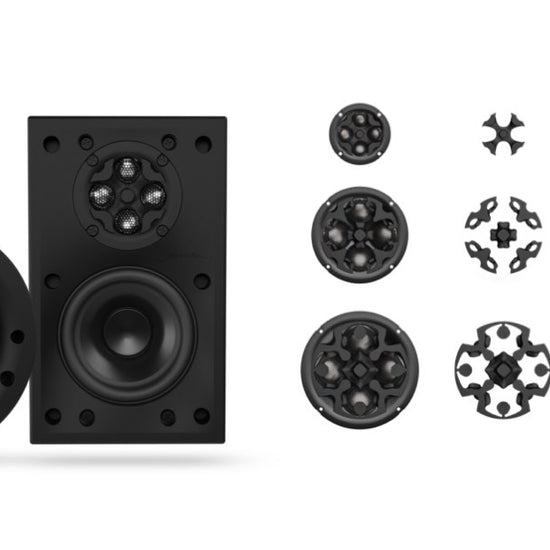

Dispersion: Quadratech Tweeter with Cymatic Diffuser
Cut-Out Dimensions (Diameter): 149.23mm
Mounting Depth: 95.0mm

VXQ68R

Speaker Tweeter: .75" (19mm) Four titanium domes, Ferrofluid-cooled, acoustic back chamber
Speaker Woofer: 6.5" (165mm) Aluminum cone, Santoprene surround
Frequency Response (+/- 3db): 40Hz - 20kHz
Power Handling (RMS): 5 watts minimum; 150 watts maximum
Sensitivity: 90dB (2.83V/1m)
Dispersion: Quadratech Tweeter with Cymatic Diffuser
Cut-Out Dimensions (Diameter): 209.55mm
Mounting Depth: 96.52mm

VXQ88R

Speaker Tweeter: 1.0" (25mm) Four titanium domes, Ferrofluid-cooled, acoustic back chamber
Speaker Woofer: 8" (203mm) Aluminum cone, Santoprene surround
Frequency Response (+/- 3db): 30Hz - 20kHz
Power Handling (RMS): 5 watts minimum; 175 watts maximum
Sensitivity: 91dB (2.83V/1m)
Dispersion: Quadratech Tweeter with Cymatic Diffuser
Cut-Out Dimensions (Diameter): 257.18mm
Mounting Depth: 96.01mm

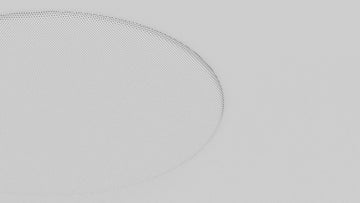

IP67 rated Visual Experience Series in-ceiling speaker featuring James Quadratech and Cymatic diffuser technology for ultimate performance for architectural applications. The VXQ88R can be ordered with a standard Micro Trim grille with an option to substitute for a Trimless grille at no additional cost. These speakers can also be configured to include a shallow or deep enclosure to suit whatever the application demands.

Cymatic Diffuser: Enhances audio dispersion and clarity for superior performance.

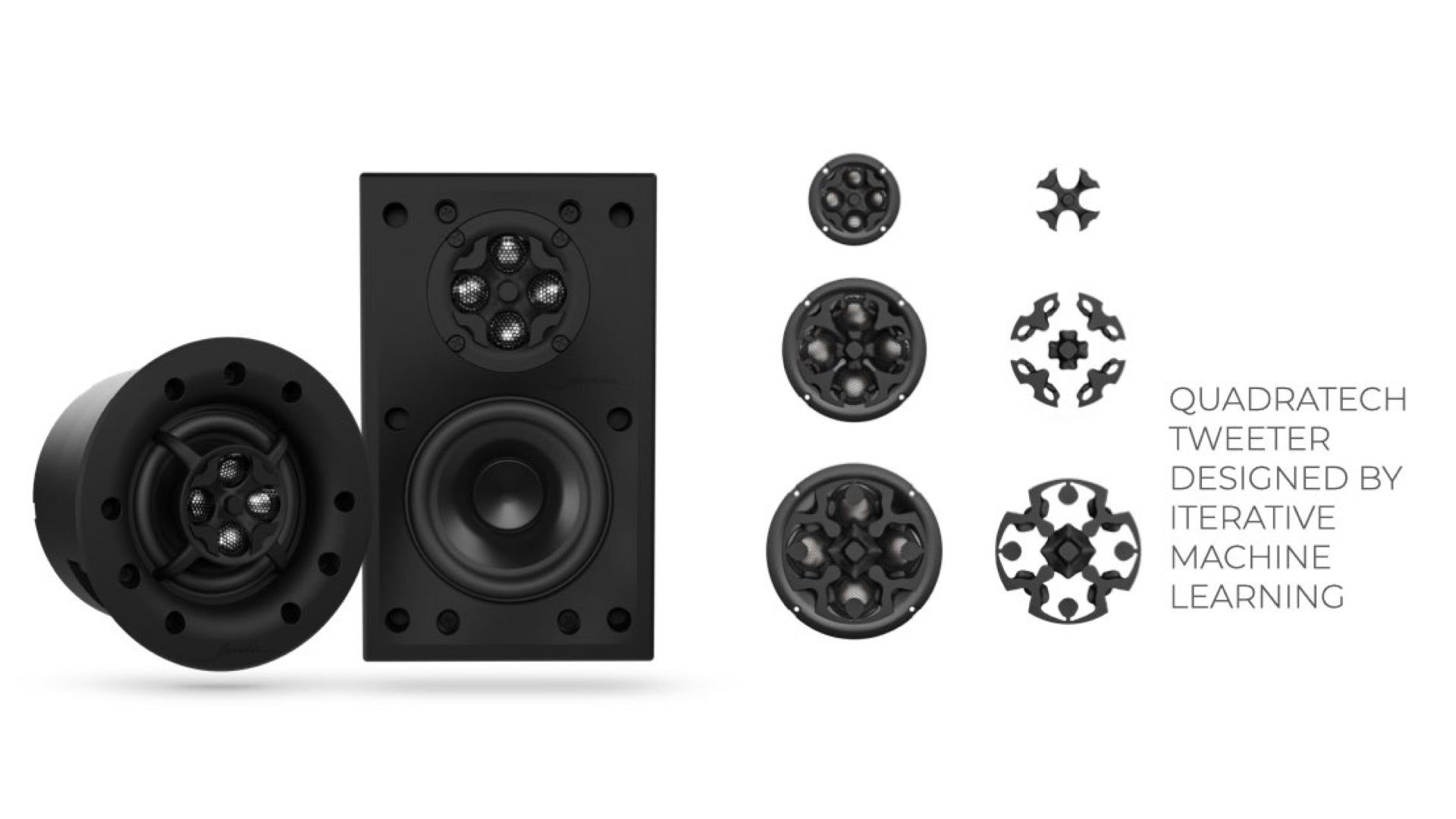

Iterative Machine Developed: Unique Quadratech Tweeter ensures low distortion and high fidelity.

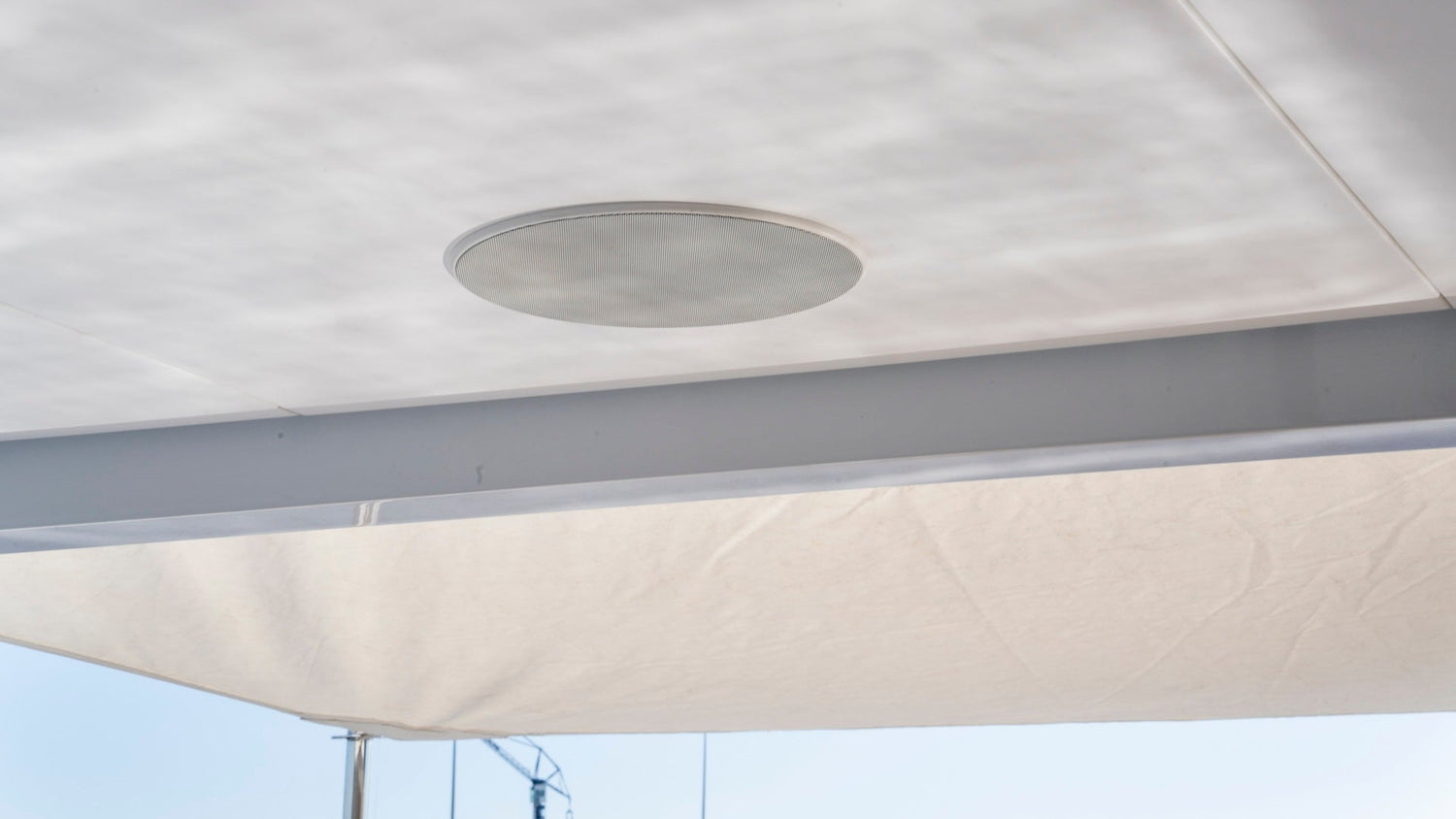

Marine Grade Aluminum: Provides durability and resistance against harsh environments.
IP67 Waterproof Rating: Protects against water and dust for outdoor reliability.
CDX Crossover Design: Optimizes sound quality across frequencies for balanced audio.
Extreme Post Capture Grille System: Securely attaches grilles for durability in any environment.
