LUMIN L2 Music Library and network switch

LUMIN L2 Music Library and network switch

LUMIN L2 Music Library and network switch

$8,000.00

Please contact us to order

Capacity: 4TB

4TB

8TB

No pre-installed drives

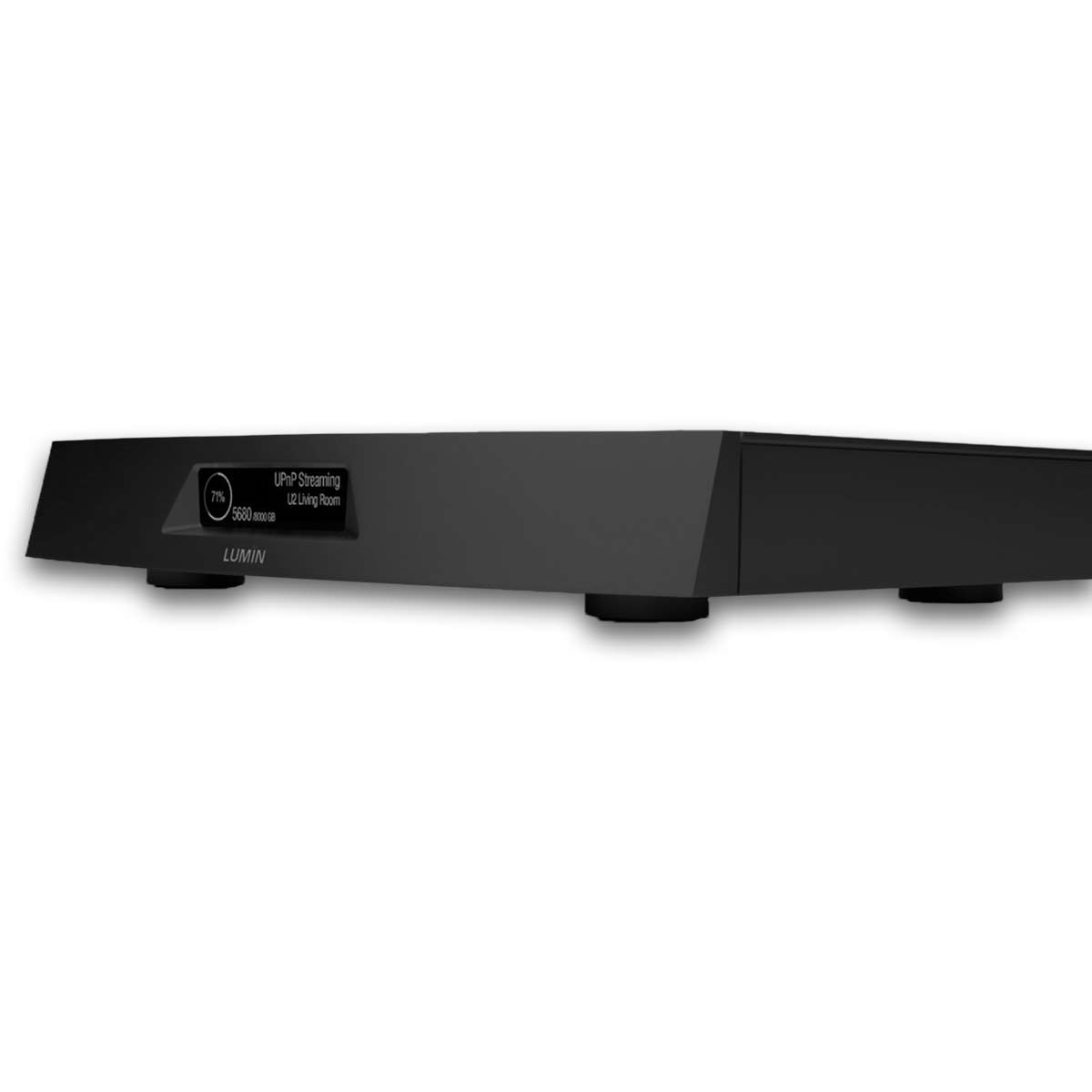

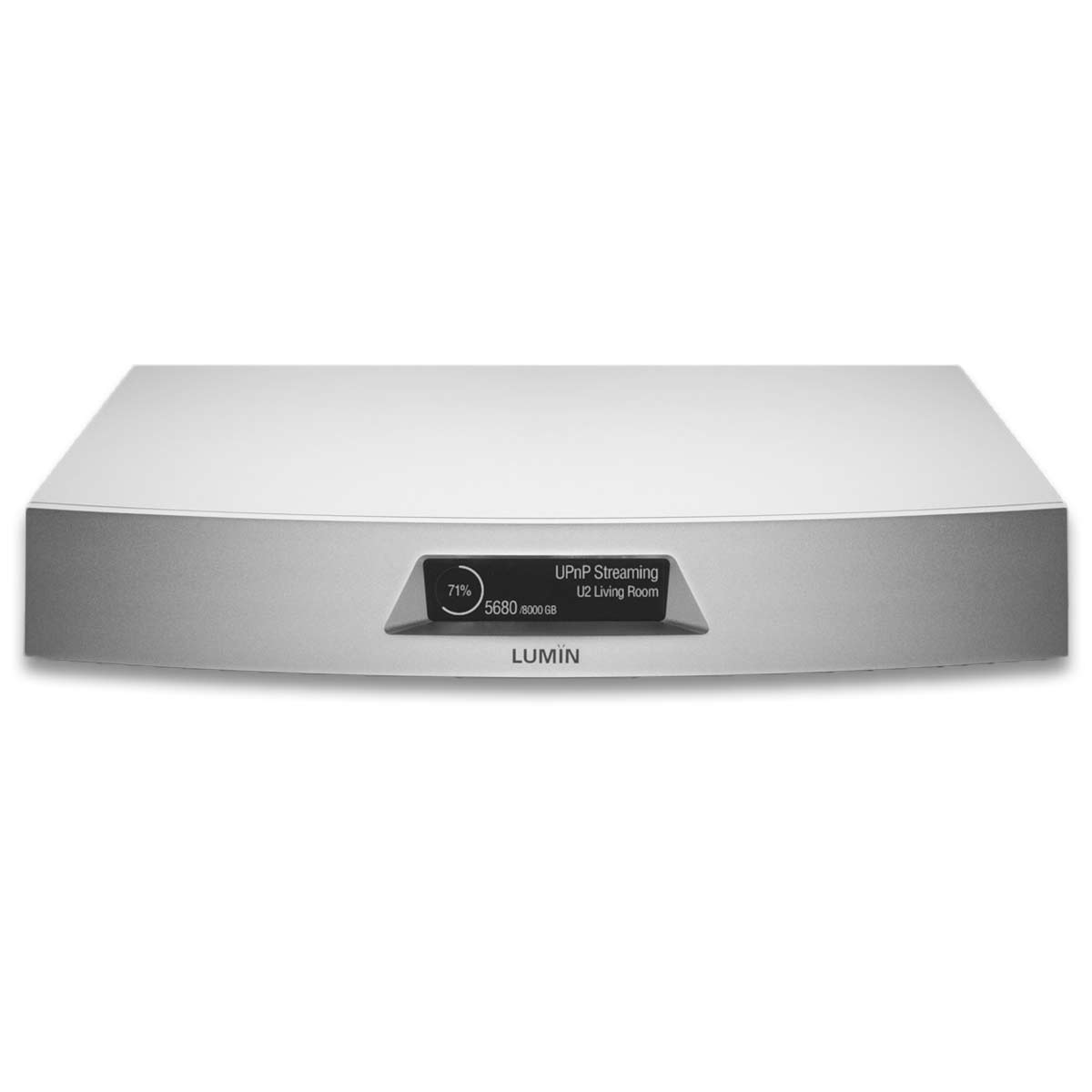

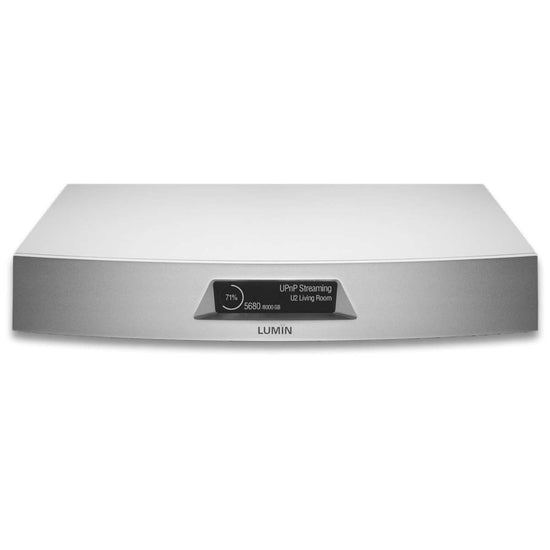

Finish: Silver

Silver

Black

Product variants

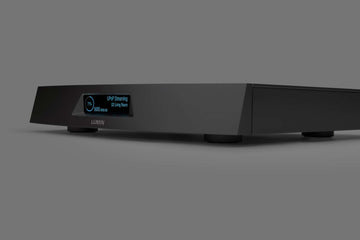

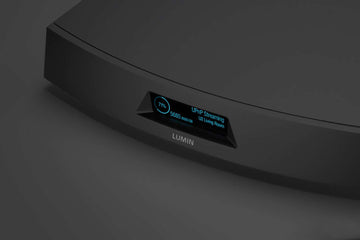

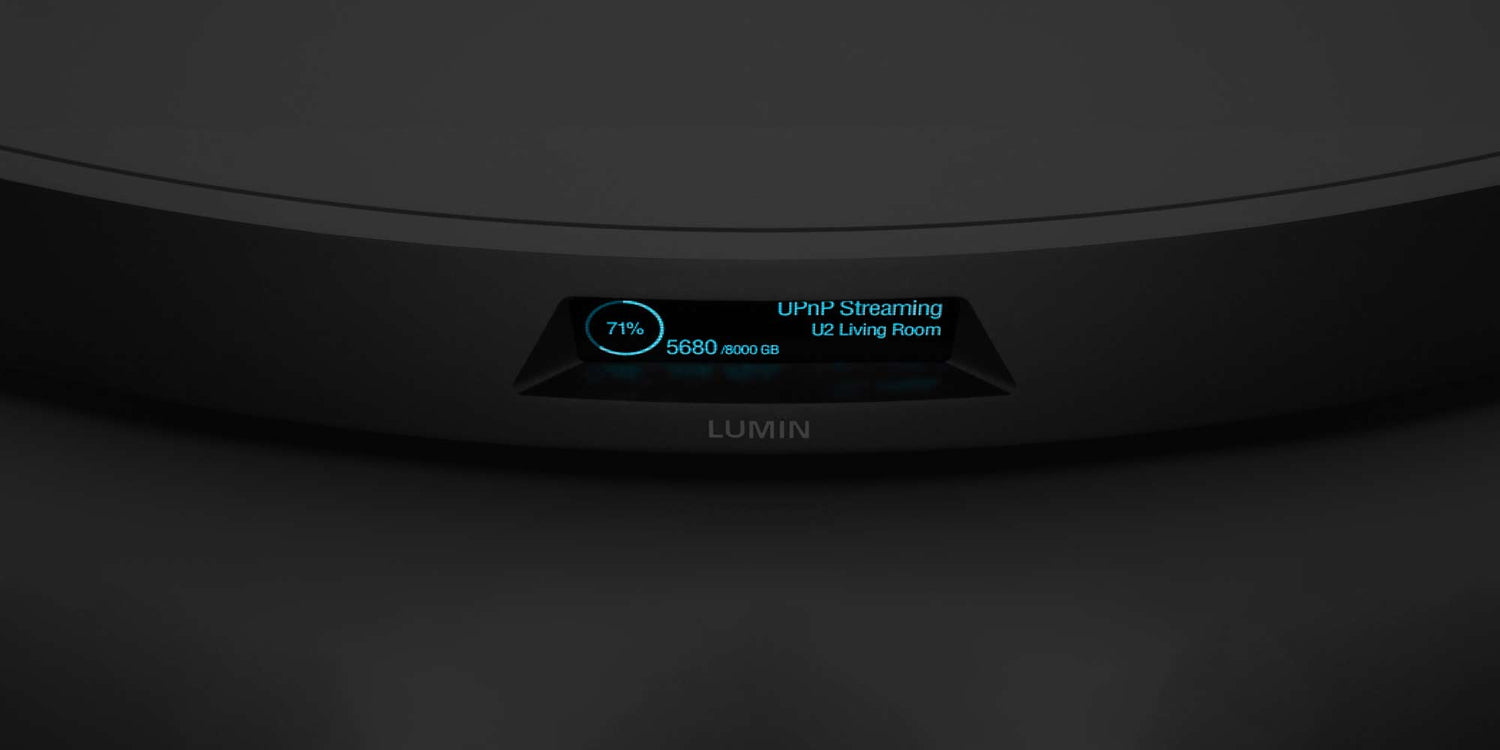

LUMIN L2 is an advanced dual-drive music server that requires zero setup and contains a 4-port audiophile-grade network switch. LUMIN L2 is the perfect partner for LUMIN owners who wish to store their own music collection. With a 4-port audiophile-grade network switch on board, its two optical fibre SFP ports and two RJ45 copper ports L2 can streamline and enhance your network.

Availability

Ask a question

Specifications

INTERNAL STORAGE: No drives, 4TB (2x 2TB) or 8TB (2x 4TB) 2.5" SSD

SUPPORTED AUDIO FILE FORMATS:

DSD LOSSLESS:
DSF (DSD), DIFF (DSD), DoP (DSD)

PCM LOSSLESS:
FLAC, Apple Lossless (ALAC), WAV, AIFF
COMPRESSED (LOSSY) AUDIO: MP3

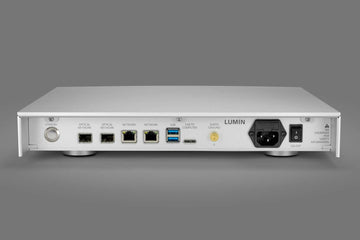

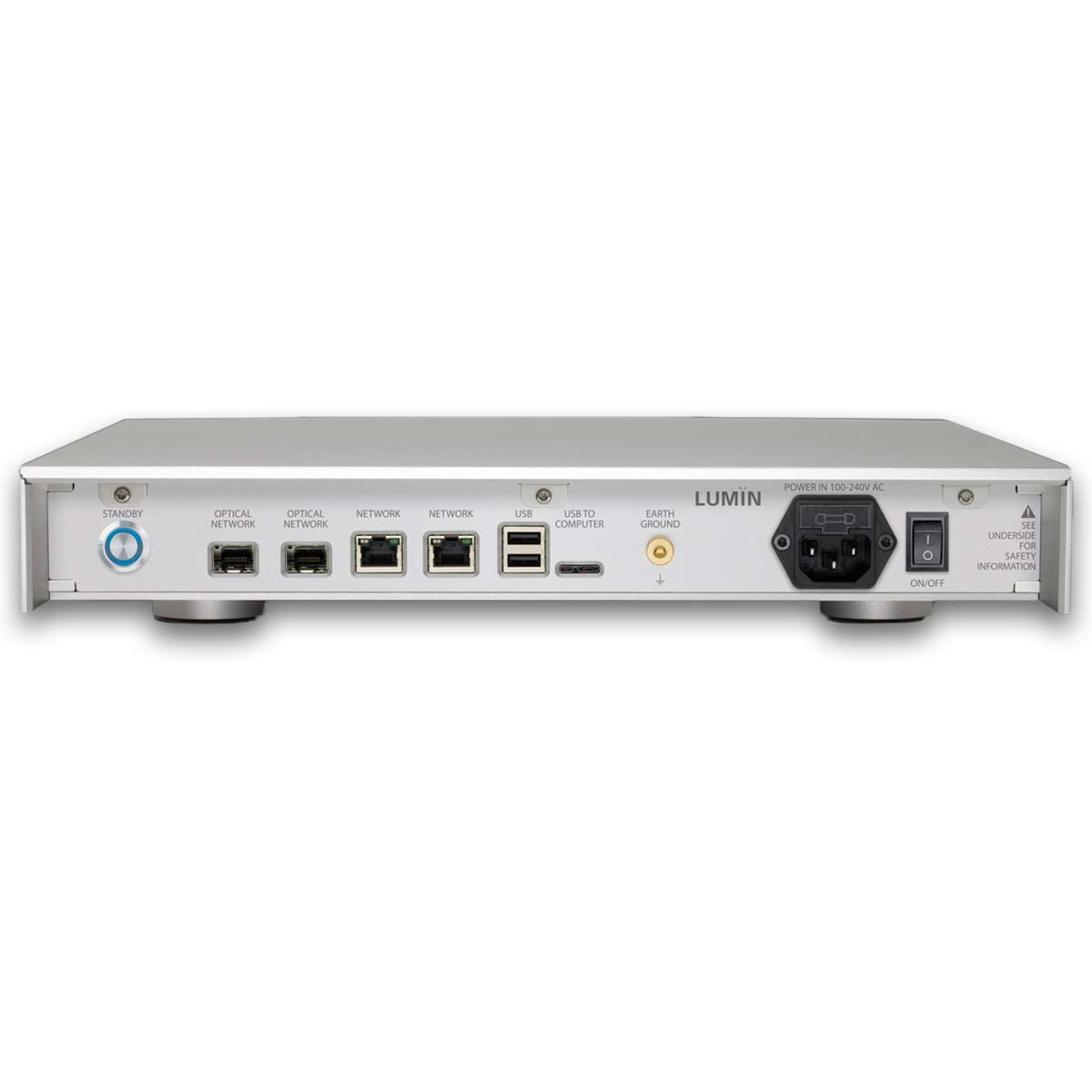

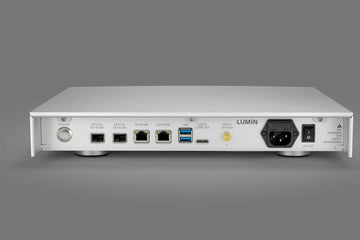

CONNECTIONS:

USB 3.0 Micro Type B Slave for connection to computer

2x Gigabit Ethernet Network (1000BASE-T) RJ45
2x Industry-standard SFP
2x USB 3.0 Type A reserved for future use

POWER SUPPLY:
Internal 100–240V AC auto-ranging
Low-noise
Shielded power supply compartment for reduced interference with delicate electronics

PHYSICAL:
FINISH:
Black anodised aluminium
Raw anodised aluminium

DIMENSIONS: 350mm (W), 350mm (D), 60.5mm (H), 6kg

Note: The 5TB HDD version uses NTFS format for the internal HDD. On a Mac computer, additional software may be needed to access NTFS formatted HDD.

The L2 is thus both a functional and musically very pleasant device.

Hi Fidelity.pl

Music library and network switch

LUMIN Music Players make use of a server to store your music collection unless you intend to stream exclusively from services like Spotify or Tidal. Previously, that meant using a computer or a NAS (Network Attached Storage), but now there is another option.

Music streaming services now provide us with instant access to tens of millions of tracks of high quality audio. LUMIN music streamers make it easy to integrate this vast library of music into your Hi-Fi system, allowing you to get the most out of your listening experience.

Features:

ZERO CONFIGURATION
Simply add music to LUMIN L2 via USB or over the network and it all gets served automatically. No complex installation or setup steps. Both 4TB and 8TB options are available that will drop straight into your music system with no fuss.

LUMIN SERVER SOFTWARE
LUMIN's bespoke server software is specifically designed for the demands of LUMIN owners - featuring rock-solid stability, rich tag support and, of course, high resolution PCM/DSD support.

BUILD QUALITY

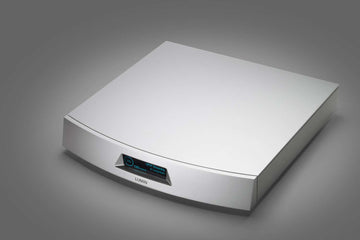

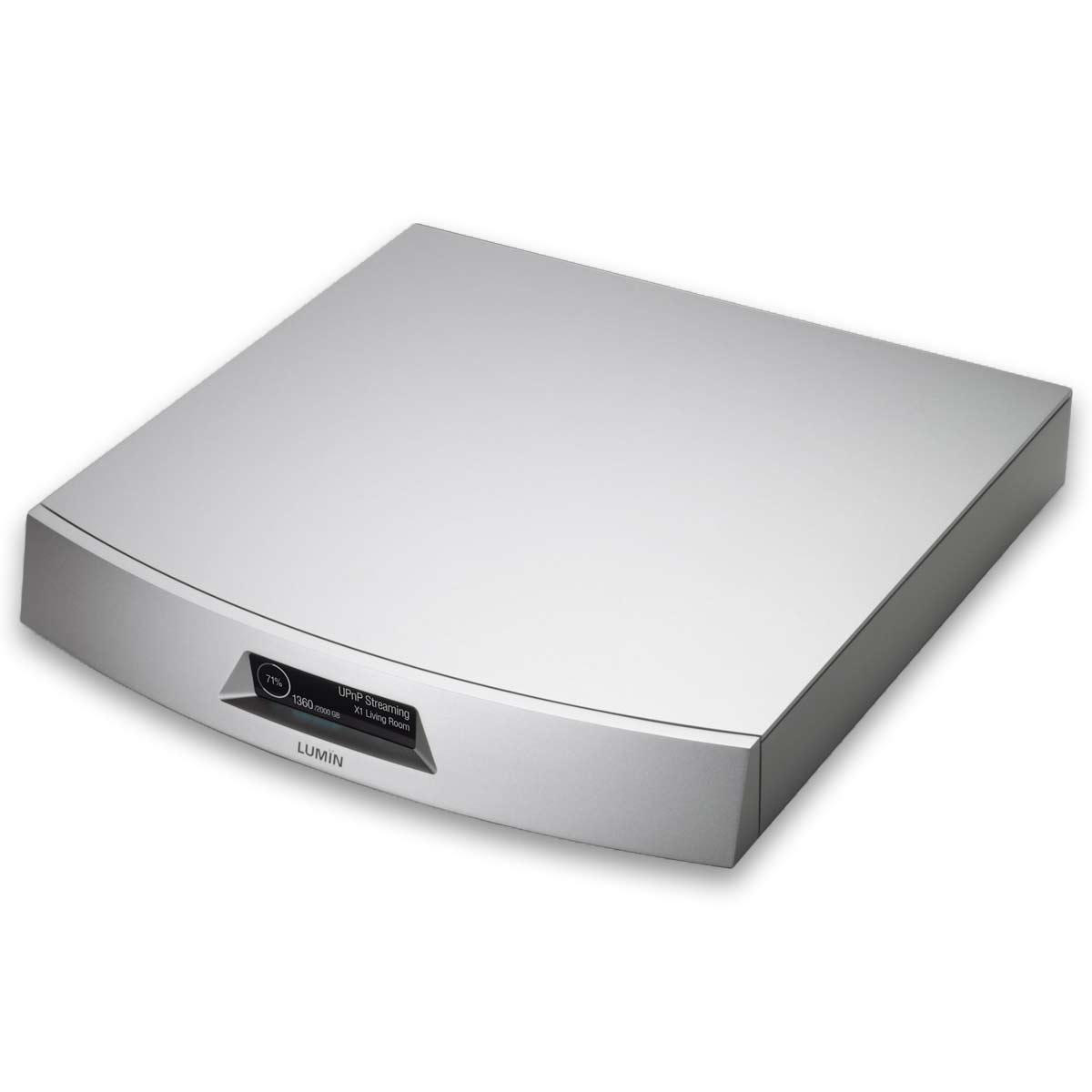

Silent, vibration-free design offers the same thick shielded CNC chassis construction as our high-end P1 music player. Available in the same black and silver finishes, LUMIN L2 is the perfect accompaniment and will match the styling of your LUMIN music player.

4 PORTS
With 4 network ports (2 x RJ45 and 2 x optical) LUMIN L2 can simplify your wiring and remove the need for cheap (and electrically noisy) switches around your hi-fi.

NETWORKING
2x SFP ports allow optical fibre networking input and output, completely electrically isolating your hi-fi from the rest of your network. Gigabit Ethernet and USB 3.0 connections are also provided for fast data transfers.

LOW-NOISE DESIGN

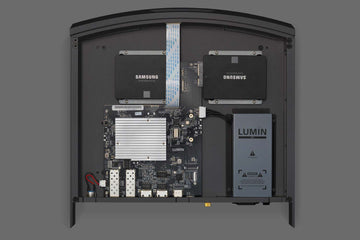

Shielded, low-noise power supply, thick and rigid CNC aluminium chassis, and spacious layout all help provide untouched data to your network player.

Who is this for?

The Lumin L2 is designed for serious music collectors who want a purpose-built digital music library that also improves overall network performance within a high-end streaming system.

Part server, part network component, the L2 is aimed at listeners with substantial digital music collections who want faster access, quieter operation, and a cleaner streaming environment. Its network-isolation features and fibre capability make it particularly attractive in systems where reducing electrical noise is a major priority.

Rather than simply storing files, the L2 becomes an active part of the overall digital playback chain—helping improve consistency, stability, and system coherence across connected Lumin components.

It’s especially compelling in larger, carefully optimised systems where every improvement in network integrity can contribute to a more relaxed and believable listening experience.

What is the LUMIN L2 designed to do?

The LUMIN L2 is a dual-purpose audiophile component from LUMIN that combines a high-capacity music library server with a built-in audiophile-grade network switch. It is designed to store, serve, and optimise digital music playback in high-end streaming systems.

Is the LUMIN L2 a music server, NAS, or network switch?

It is both a music server and a network switch. The L2 stores your music collection on internal drives and also distributes it over a built-in 4-port network switch with fibre and Ethernet connectivity for improved system isolation.

What is the main purpose of the LUMIN L2?

Its main purpose is to simplify and improve digital audio systems by combining local music storage with a low-noise, high-performance network architecture, reducing the need for separate NAS devices and standard network switches.

How does the LUMIN L2 store music?

The L2 uses internal dual-drive storage (available in different capacities or user-installed drives). Music is added via USB or network transfer (SMB), and the system automatically indexes and serves files once added.

What file formats does the LUMIN L2 support?

It supports high-resolution PCM formats such as FLAC, WAV, AIFF, Apple Lossless (ALAC), and MP3, as well as DSD formats including DSF, DIFF, and DoP, making it compatible with most modern digital music libraries.

Does the LUMIN L2 require complex setup?

No. It is designed for “zero configuration” operation. Once connected to the network and populated with music, it automatically scans, indexes, and serves the library to compatible players.

What makes the LUMIN L2 different from a standard NAS drive?

Unlike a typical NAS, the L2 is purpose-built for audio playback. It uses audiophile-grade power supply design, vibration control, and optimised server software to reduce noise and improve performance in high-end audio systems.

What is the built-in network switch used for?

The integrated 4-port switch allows you to connect audio components directly, reducing reliance on standard consumer network switches that can introduce electrical noise into sensitive digital audio systems.

What is the benefit of the fibre (SFP) ports?

The L2 includes SFP fibre ports that allow optical network connections, providing galvanic isolation. This helps reduce electrical noise and interference reaching streaming components in a hi-fi system.

Can the LUMIN L2 improve sound quality?

Yes, indirectly. While it does not process audio itself, it can improve overall system performance by reducing network noise, simplifying signal paths, and isolating audio components from standard network traffic.

How does music get added to the LUMIN L2?

Music can be transferred via USB connection to a computer or over the network using SMB file sharing. Once transferred, the L2 automatically indexes the library for playback.

Is the LUMIN L2 compatible with Roon or UPnP?

Yes. It functions as a UPnP/OpenHome music server and is compatible with Roon-based ecosystems when used with appropriate endpoints.

Does the LUMIN L2 need external power or special setup?

It requires standard mains power and is designed for simple operation. After installation and connection to the network, it runs continuously as a background music server and switch.

What type of system does the LUMIN L2 work best in?

It is designed for high-end LUMIN-based or audiophile streaming systems where users want local music storage combined with optimised, low-noise network distribution.
