LUMIN X1 Music Streamer

$16,999.00

$16,999.00 ~~$24,900.00~~

Please contact us to order

Colour: Silver

Silver

Black

Product variants

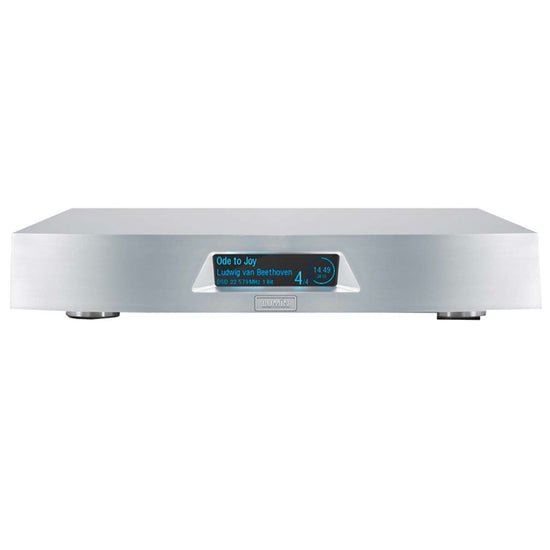

The Lumin X1 Music Streamer is Lumin’s reference-level digital source, designed for listeners who want to hear exactly how good modern high-resolution streaming can sound when nothing is compromised. It sits at the very top of the range, combining advanced DAC architecture, extreme isolation techniques, and precision engineering to deliver a presentation that is both technically exceptional and deeply musical.

Availability

Ask a question

Specifications

DSD SUPPORT: Up to DSD512 22.6MHz, 1-bit

PCM SUPPORT: Up to 768kHz, 16–32-bit, Stereo

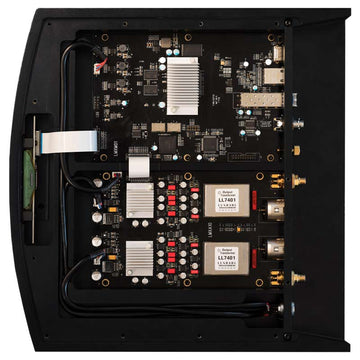

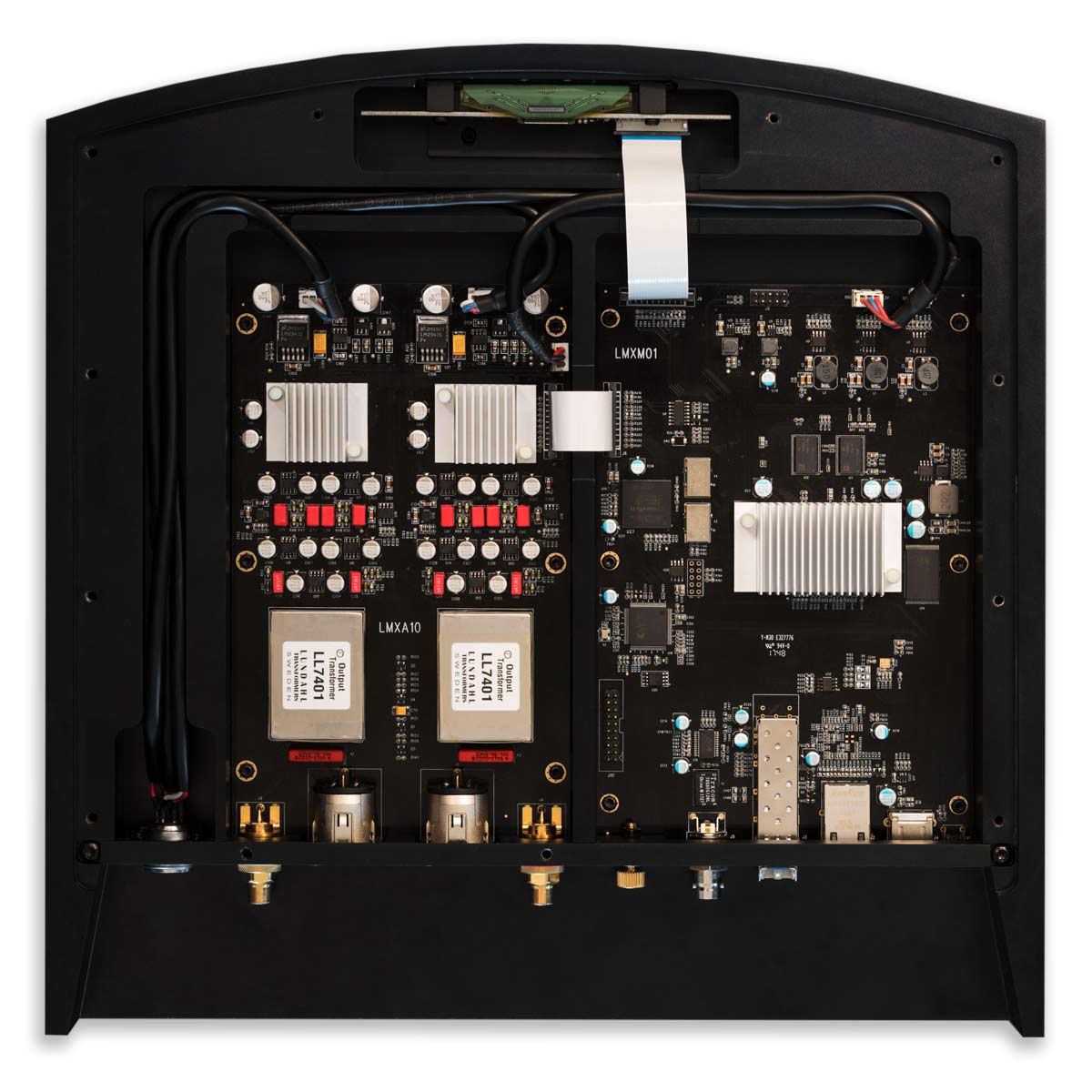

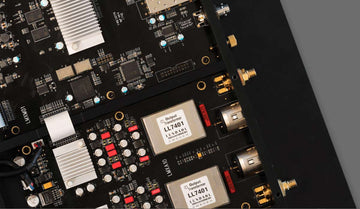

ANALOG OUTPUT STAGE: Dual ESS SABRE32 ES9038Pro DAC chips Fully balanced layout with high-quality components Output connectors coupled with dual LUNDAHL LL7401 output transformers Femto Clock System with precision FPGA distribution

UPSAMPLING RATES & BIT DEPTHS: DSD128 upsampling option for all files PCM 384kHz upsampling option for all files

DIGITAL OUTPUT STAGE: USB: Native DSD512 support PCM 44.1–768kHz, 16–32-bit, Stereo BNC SPDIF: PCM 44.1kHz–192kHz, 16–24-bit DSD (DoP, DSD over PCM) 2.8MHz, 1-bit

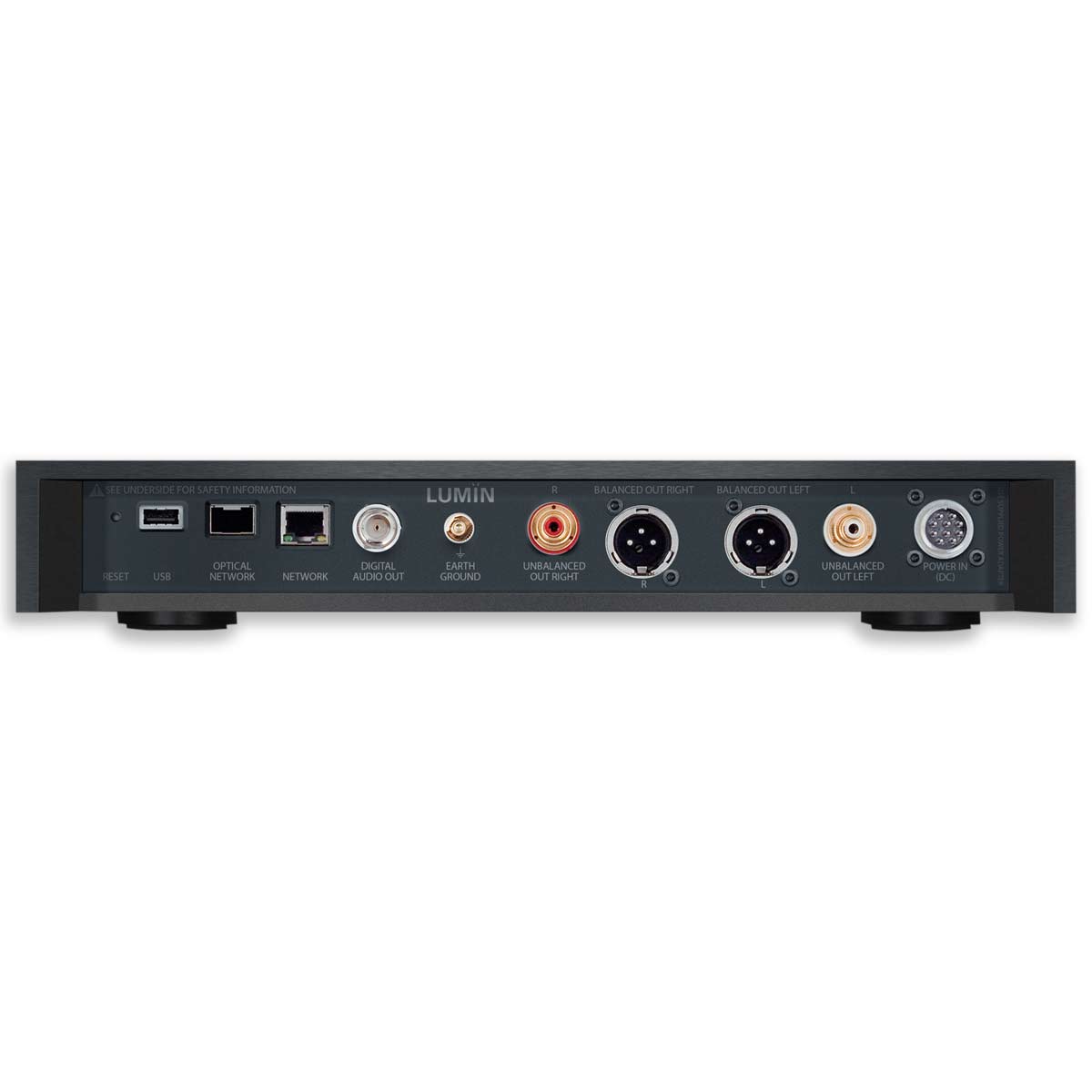

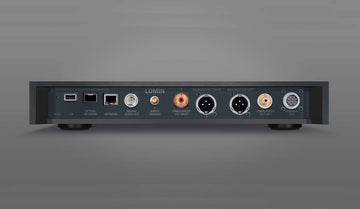

OPTICAL NETWORK: Industry-standard SFP 1000Base-T Gigabit Ethernet Adapter may be needed for your particular switch/cables Use simultaneously with RJ45 (e.g. connect one to router and one to LUMIN L1 or NAS)

POWER SUPPLY: External solid billet cnc dual-toroidal Separate digital & analogue circuitry Low-noise linear regulator 9-pin Output Connector

PHYSICAL:

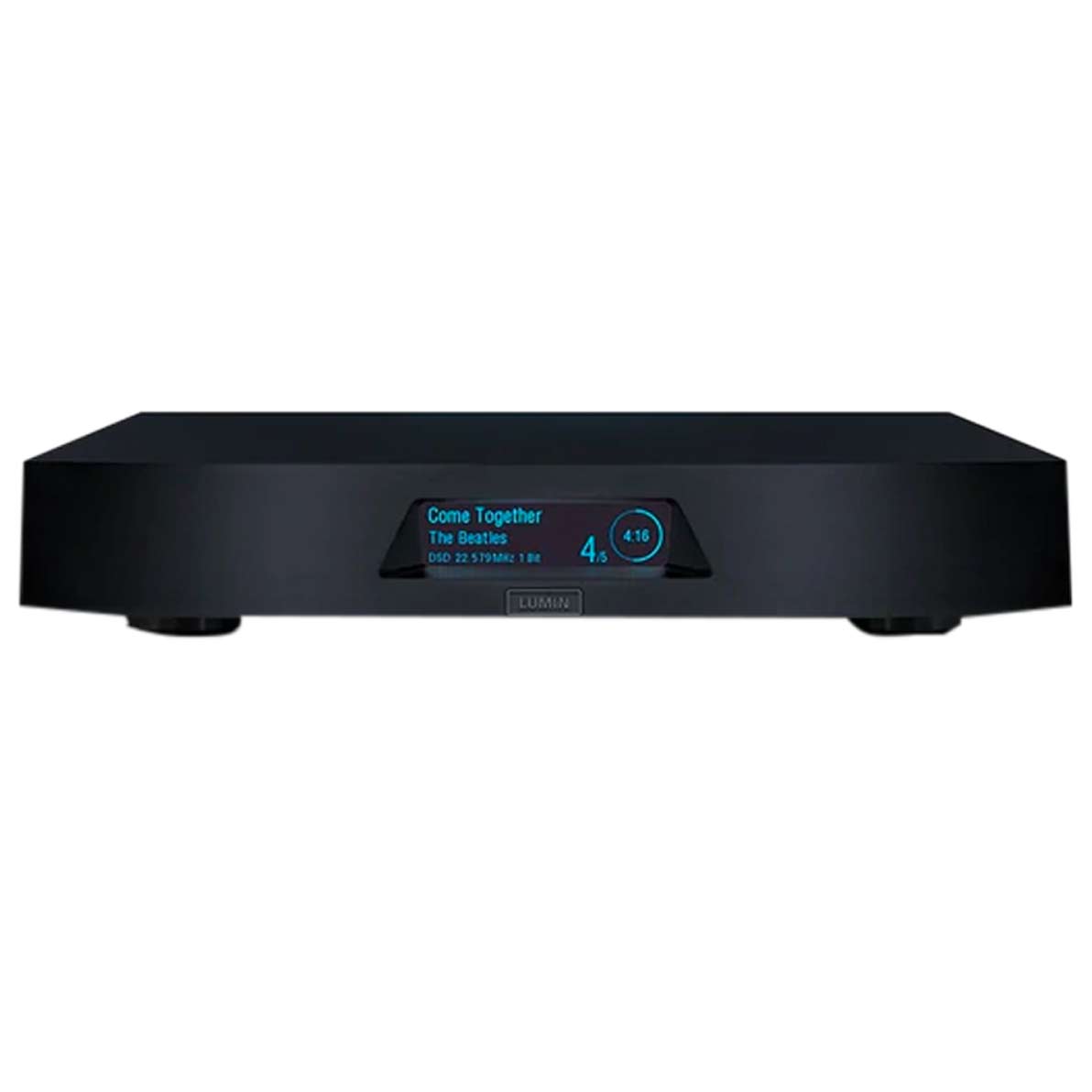

FINISH: Black anodised brushed aluminium (with matching PSU) Raw brushed aluminium (with matching PSU)

LUMIN (SOLID ALUMINIUM CHASSIS): 350mm (W), 345mm (D), 60mm (H), 8kg

PSU (SOLID ALUMINIUM CHASSIS): 106mm (W), 334mm (D), 60mm (H), 4kg

To say I’m impressed by the LUMIN X1 is something of an understatement. I am blown away by its performance.

The Absolute Sound

Streamings new cutting edge

At its core, the X1 uses a fully balanced, dual-mono DAC design built around ultra-high-performance components and Lumin’s most advanced clocking and processing architecture. This is supported by a separate external linear power supply, physically isolating the noisy power section from the audio circuitry. The result is an exceptionally low noise floor, allowing music to emerge with striking clarity, depth, and natural spatial definition.

One of the defining features of the X1 is its use of fibre network input alongside standard Ethernet, providing complete electrical isolation from network noise. This helps preserve micro-detail and timing precision, creating a darker background from which the music can unfold with greater realism and ease.

Stream from anywhere

The X1 supports native playback of high-resolution PCM and DSD formats, including PCM up to 384kHz and DSD up to DSD256. It also offers full compatibility with major streaming platforms including Roon Ready, TIDAL, Qobuz, Spotify Connect, AirPlay, TuneIn, and MQA decoding, ensuring effortless access to both local libraries and global streaming services.

Sonically, the X1 is about refinement without restraint. It delivers extraordinary detail retrieval, but never at the expense of musical flow. Instruments are placed with precision and stability, vocals feel natural and present, and complex recordings remain effortless and composed even at high levels of resolution.

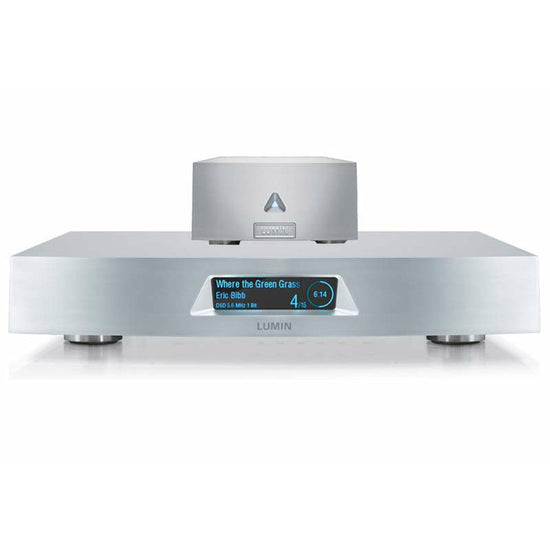

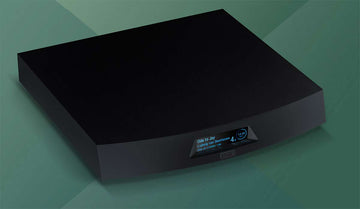

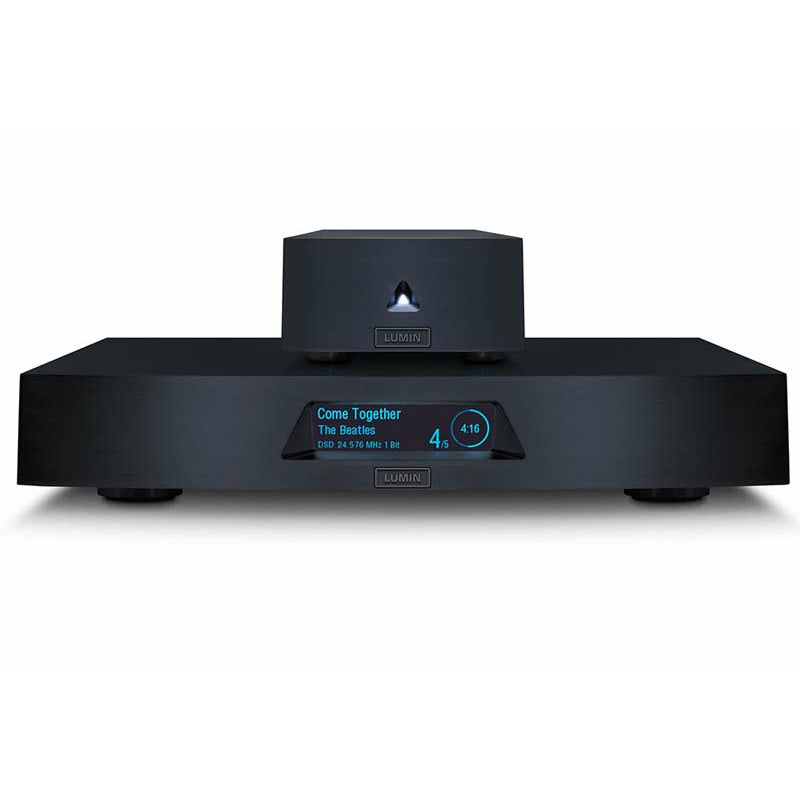

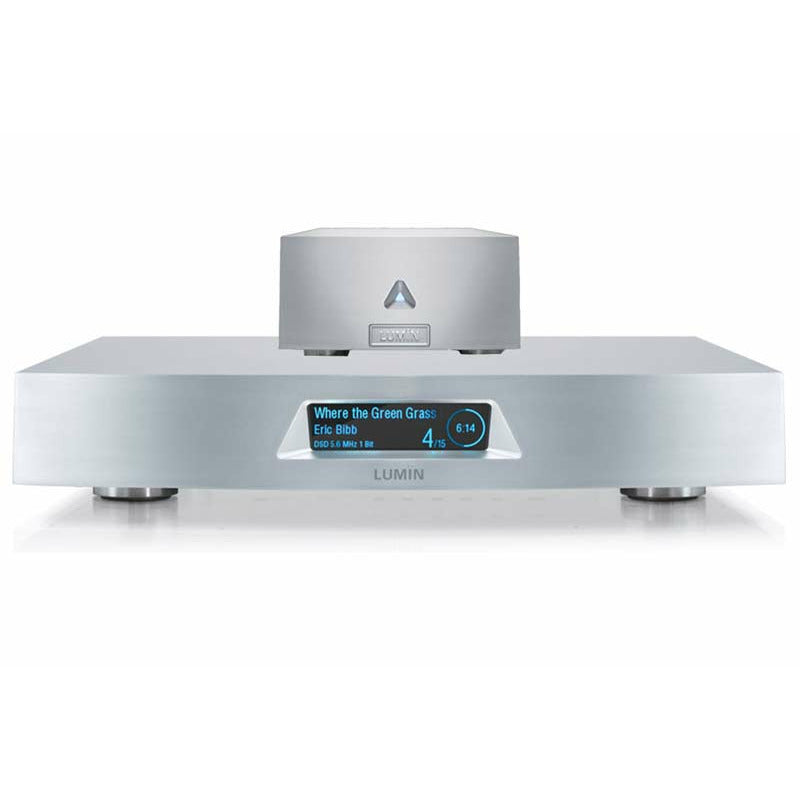

The chassis is beautifully engineered from solid aluminium, with a focus on rigidity and vibration control. Combined with its external power supply, the physical design reflects the same philosophy as its sound—absolute attention to detail and long-term performance stability.

If you have a collection of digital music, either purchased via websites like Bandcamp, HD Tracks or Qobuz, or ripped from your own CD collection, the LUMIN streamers will help you get the best from these files. They'll play music in any format (including DSD), stored on either a hard drive that's connected directly to a LUMIN, or via a network storage device like the LUMIN L1 or 3rd party NAS drive.

All LUMIN network players are certified as Roon ready, which means they'll drop right into your existing setup if you're a Roon user. Roon is an elegant music management tool that's designed for music-loving audio enthusiasts. It combines your existing digital music collection with the best streaming services to provide an unmatched music browsing and discovery experience. Learn more about Roon here.

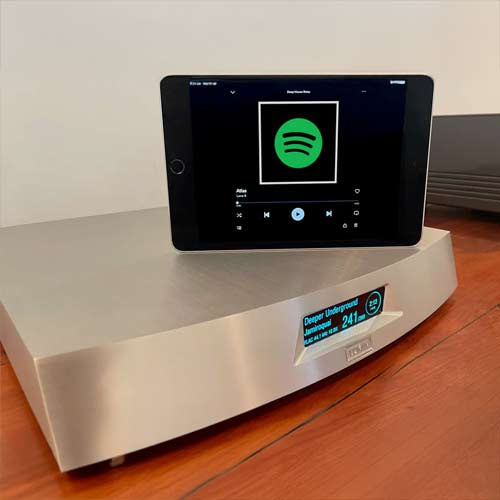

If you're not a Roon user, controlling your player is still easy and fun using the free LUMIN App. It was created to work in harmony with the LUMIN hardware to deliver the most intuitive and visually rich way to browse, select and play your music collection.

Who is this for?

This is a component for a mature, high-resolution system where the source deserves to be the equal of everything around it — reference amplification, demanding loudspeakers, and a listening environment that will reveal what the X1 is genuinely capable of.

At Soundline, the X1 represents the pinnacle of what we carry in network streaming — chosen because it sets a standard that is difficult to argue with, and because once heard in a resolving system, it is not easily forgotten.

What is the LUMIN X1 designed to do?

The LUMIN X1 is the flagship ultra-high-end network music streamer, DAC, and digital preamplifier from LUMIN. It is designed to be a no-compromise source component for reference-level hi-fi systems, combining streaming, conversion, and preamp control in one chassis.

Is the LUMIN X1 a streamer, DAC, or preamp?

It is all three. The X1 functions as a network streamer, a dual-mono high-end DAC, and a digital preamplifier with volume control, allowing it to drive a power amplifier directly if desired.

What makes the LUMIN X1 different from lower LUMIN models?

The X1 is built around a fully re-engineered reference platform featuring dual-mono architecture, dual ESS ES9038Pro DACs, an external linear power supply, and advanced clocking and isolation systems. These upgrades significantly reduce noise and improve resolution, imaging, and dynamic range.

Does the LUMIN X1 support high-resolution audio?

Yes. It supports PCM up to 768kHz/32-bit and DSD up to DSD512, covering virtually all high-resolution digital formats available today.

What streaming services does the LUMIN X1 support?

The X1 supports major platforms including TIDAL, Qobuz, Spotify Connect, TIDAL Connect, Roon Ready, AirPlay, internet radio, and MQA playback, along with NAS and local library streaming.

What DAC does the LUMIN X1 use?

It uses dual ESS SABRE ES9038Pro DAC chips in a fully balanced dual-mono configuration, providing extremely high dynamic range and very low distortion performance.

Does the LUMIN X1 have a built-in preamp?

Yes. It includes Leedh Processing digital volume control, allowing it to function as a full digital preamplifier and connect directly to a power amplifier without needing a separate preamp stage.

What is the purpose of the external power supply?

The separate solid billet dual-toroidal power supply physically isolates power delivery from the audio circuitry, reducing electrical noise and improving clarity, black background, and micro-detail retrieval.

Does the LUMIN X1 support fibre networking?

Yes. It includes optical (SFP) network connectivity, which provides galvanic isolation from standard Ethernet noise sources and helps improve signal purity in sensitive systems.

Can the LUMIN X1 be used without a separate DAC or preamp?

Yes. In many systems, it is used as a complete front-end source component feeding a power amplifier directly, simplifying system design while maintaining reference-level performance.

What type of system does the LUMIN X1 work best in?

It is designed for reference-level hi-fi systems with high-resolution amplification and revealing loudspeakers, where its resolution, staging, and low-noise performance can be fully appreciated.
