Monitor Audio Level 3 In-Wall Speakers

Monitor Audio Level 3 In-Wall Speakers

$1,800.00

Sold out

Size: Medium

Medium

Large

Product variants

The Monitor Audio Level 3 In-Wall Speakers deliver audiophile performance in a discreet, architectural form. Featuring advanced driver technology with dedicated bass, midrange, and high-frequency units, they produce a wide, dynamic soundstage with exceptional clarity and detail. Designed for high-end home theater or music systems, these speakers combine robust power handling with elegant in-wall integration, ensuring immersive sound without compromising room aesthetics.

Quantity

Free Shipping for orders $500+

Ask a question

Specifications

W3M

Drive Units: 2 x 5" RDT III bass drivers, 1 x 3" C-CAM midrange driver, 1 x 25mm MPD tweeter

Nominal Impedance: 6 Ohms

Amplifier Requirement: 60-225W

Continuous Power Handling: 150W

Sensitivity (2.83v @1m): 88dB

Cut out size: 527 x 198

Mounting Depth: 85mm

Dimensions: 540mm x 211 x 90mm

Weight: 4.7kg

W3L

System Format: 2–Way

Frequency Response, Installed (-6dB): 38 Hz – 30 kHz

Sensitivity (2.83Vrms@1m, Installed): 88 dB

Nominal Impedance: 6 Ohms:

Minimum Impedance (20Hz to 20kHz): 5.2 Ohms @ 13 kHz

Maximum Peak SPL: 114 dB

Continuous Power Handling: 100 W

Recommended Amplifier Power(RMS, Music Signal):
80 – 300 W into 4 ohms
30 – 150 W into 8 ohms

Bass Alignment: Sealed

Crossover Frequency:
LF/HF: 2.7 kHz

Drive Unit Complement:
4 x 5" (127 mm) RST II bass driver
1 x 1" (25 mm) C-CAM tweeter

Mounting Depth:85 mm (33/8")

Cutout L x W:880 x 202 mm

Pre-Construction Bracket:WL-B

External Dimensions with all accessories fitted (H x W x D)
909 x 231 x 93 mmWeight (each): With grille 6.69 kg Without grille 5.84 kg
Cabinet Finish: Matte black & Orange & Bronze

High performance in-wall speaker

Tier 3 of the Monitor Audio Creator Series is a high-performance range of speakers that have all the engineering qualities of Tier 2, but offer improved acoustic performance and further features for enhanced speaker placement freedom, such as boundary correction and mid/high-frequency cut/boost, plus leading-edge acoustic technologies.

The Creator Series re-writes the rules of custom installation. A smart, tiered range of high-performance, installer-friendly in-ceiling and in-wall loudspeakers that delivers better sound for customers, and enhanced flexibility and clarity for installers.

The application of key Monitor Audio acoustic technologies more usually found in premium standalone loudspeakers ensures lifelike, pristine sound, while innovative features and a comprehensive, clearly defined range make for hassle-free installation.

If you thought you knew custom installation, think again. Creator Series redefines British high-fidelity architectural sound.

W3M

The W3M is a medium sized in-wall speaker with dual 5" RDT III bass drivers. Positioned either side of the HF/MF array, this configuration improves linearity between drivers and ensures a much larger, purer and cleaner sound is delivered into the listening area, and with greater bass extension.

W3L

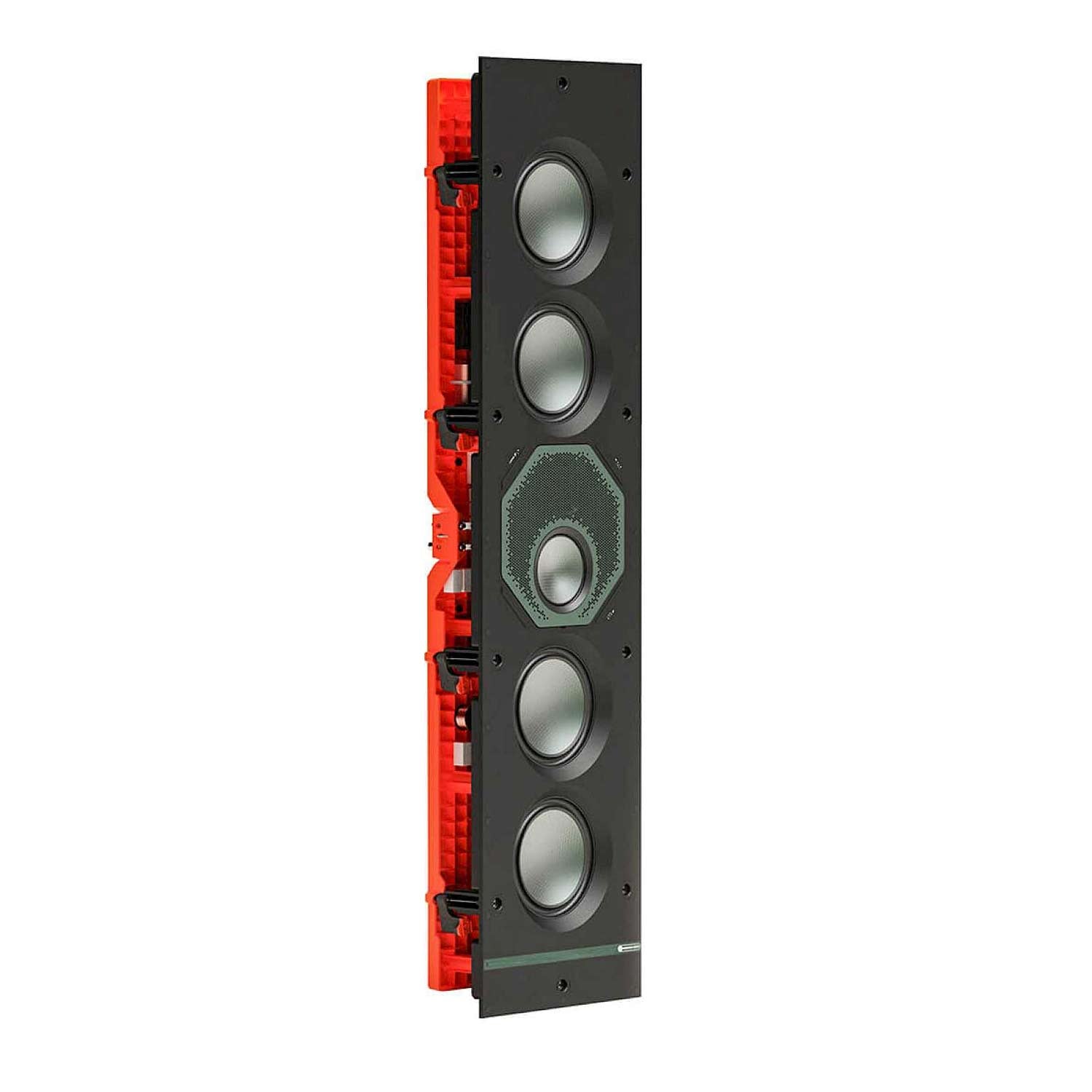

Built with Monitor Audio’s signature driver technology and housed within a rigid, in-wall frame, the W3L offers a seamless fit that blends into any interior while maintaining robust acoustic performance. Ideal for those seeking the ultimate balance of discretion and uncompromised sound quality, the W3L provides a true high-end listening experience without visible loudspeakers dominating the room.

Also present is a 3" C-CAM midrange driver and a single MPD tweeter. The W3M features a rotating mid-pod driver array which allows the speakers to be positioned horizontally or vertically. This highly flexible solution ensures that the phase of the transducer is correct in either orientation.

Tri-Grip II

Tri-Grip Il is a new dog-leg mechanism that is considerably stronger and more reliable than the previous generation, meaning both speaker placement and extraction could not be simpler.

Quik-Link

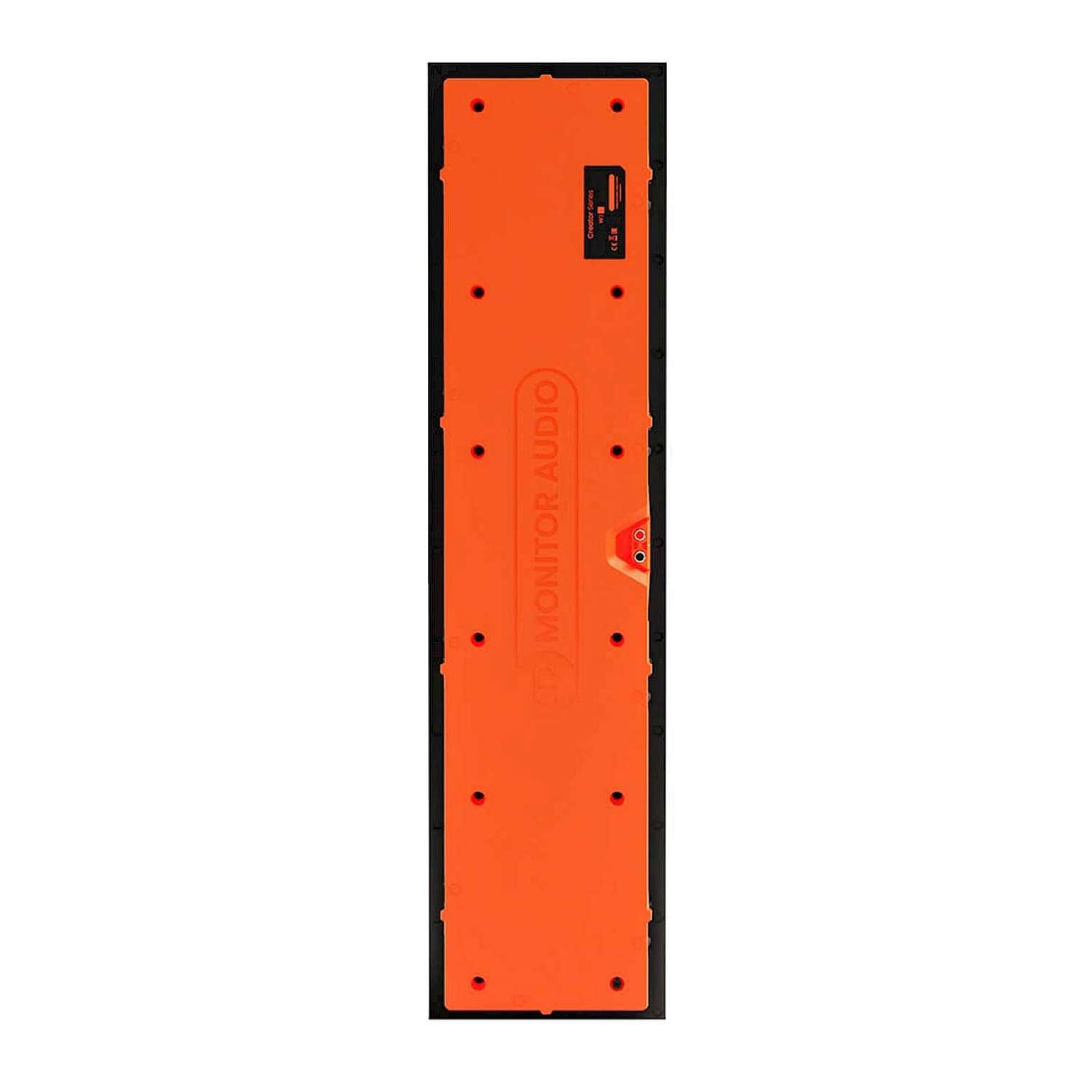

Our new innovative Quik-Link terminal revolutionises speed of installation. With Quik-Link you can make cable connections up the ladder at pre- installation stage. Once the installation is complete, the terminal, which is now connected with the speaker cables, magnetically snaps and locks into place on the rear of the speaker as you place the speaker into ceiling or wall. It's that easy.
