Rega Neo PSU Mk2

Name: Rega Neo PSU Mk2
Brand: Rega
Price: 625.00 NZD
Availability: OutOfStock

$625.00

Sold out

Product variants

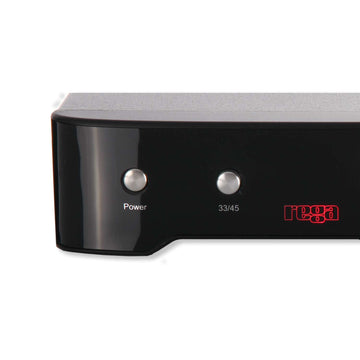

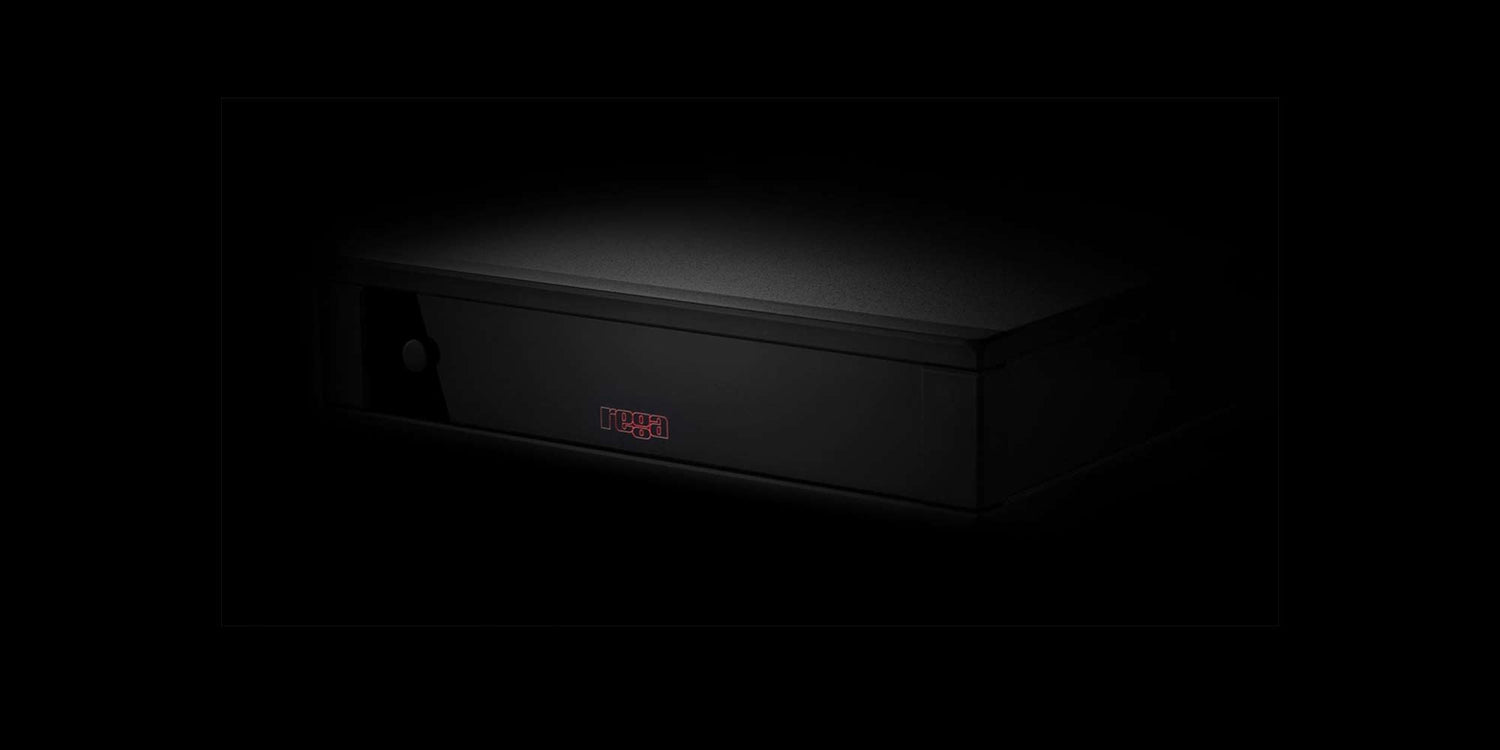

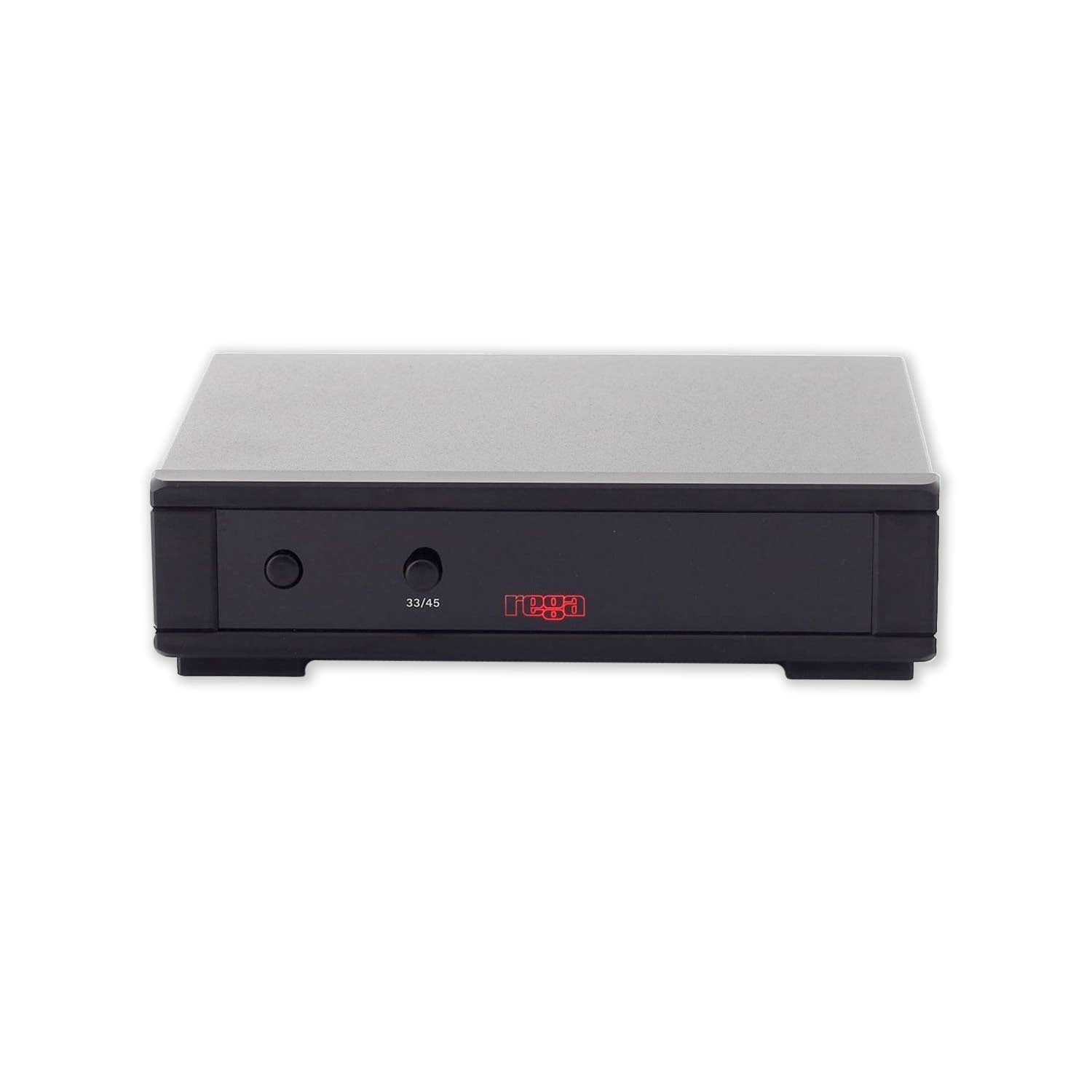

The new Neo MK2 is housed in a redesigned case to bring it in line with other products in the range creating an improved family feel. The Neo MK2 PSU is an advanced turntable power supply providing user controllable fine speed adjustment, an advanced anti-vibration motor circuit and the convenience of electronic speed change. The Neo MK2 will make a welcome addition to any compatible Rega turntable by reducing motor noise, improving speed stability and rotational speed accuracy.

Quantity

Free Shipping for orders $500+

Ask a question

Specifications

Output to motor bi-phase: 24 V AC protected by resettable fuse
Power consumption: 7.2 W
Voltage: 24 V AC
Power supply: Rega PS1 only
Speed control step size: 0.01 RPM
PS1 (UK)
Input 230 V ~ 50 Hz 0.07 A / Output 24 V ~ 350 mA AC
PS1 (EU - Euro 2 pin)
Input 230 V ~ 50 Hz 0.07 A / Output 24 V ~ 350 mA AC
PS1 (American)
Input 115-120 V ~ 60 Hz / Output 24 V ~ 350 mA AC
PS1 (Australian)
Input 230 V ~ 50 Hz 0.07 A / Output 24 V ~ 350 mA AC
PS1 (Japan)
Input 100 V ~ 50/60 Hz / Output 24 V ~ 350 mA AC
PS1 (Korea)
Input 220 V ~ 60 Hz 0.07 A / Output 24 V ~

Compatible with the following Rega turntable models:

P3-24 / RP3 / Planar 3 2016-current / RP6 / P5 / P7 / RP40 special edition / RP8 Or any older Rega turntable fitted with our aftermarket 24v upgrade kit.

Using the same DSP (digital signal processing) generator found in the Planar 10 power supply the Neo MK2 is built upon a high stability crystal.

The DSP generator will divide the accurate signal from the crystal to the exact frequency required to turn the platter at the selected speed whilst producing a near perfect sinusoidal waveform to drive the 24v motor. Fine speed adjustment is made via the rear panel using the supplied custom Neo trim tool (supplied).

Planar 6 and Planar 8 turntable models which include the Neo will now ship with the MK2 Neo supplied as standard.
