Rega Planar 10 Reference Turntable

$10,000.00

Please contact us to order

Colour: Matt Polaris Grey

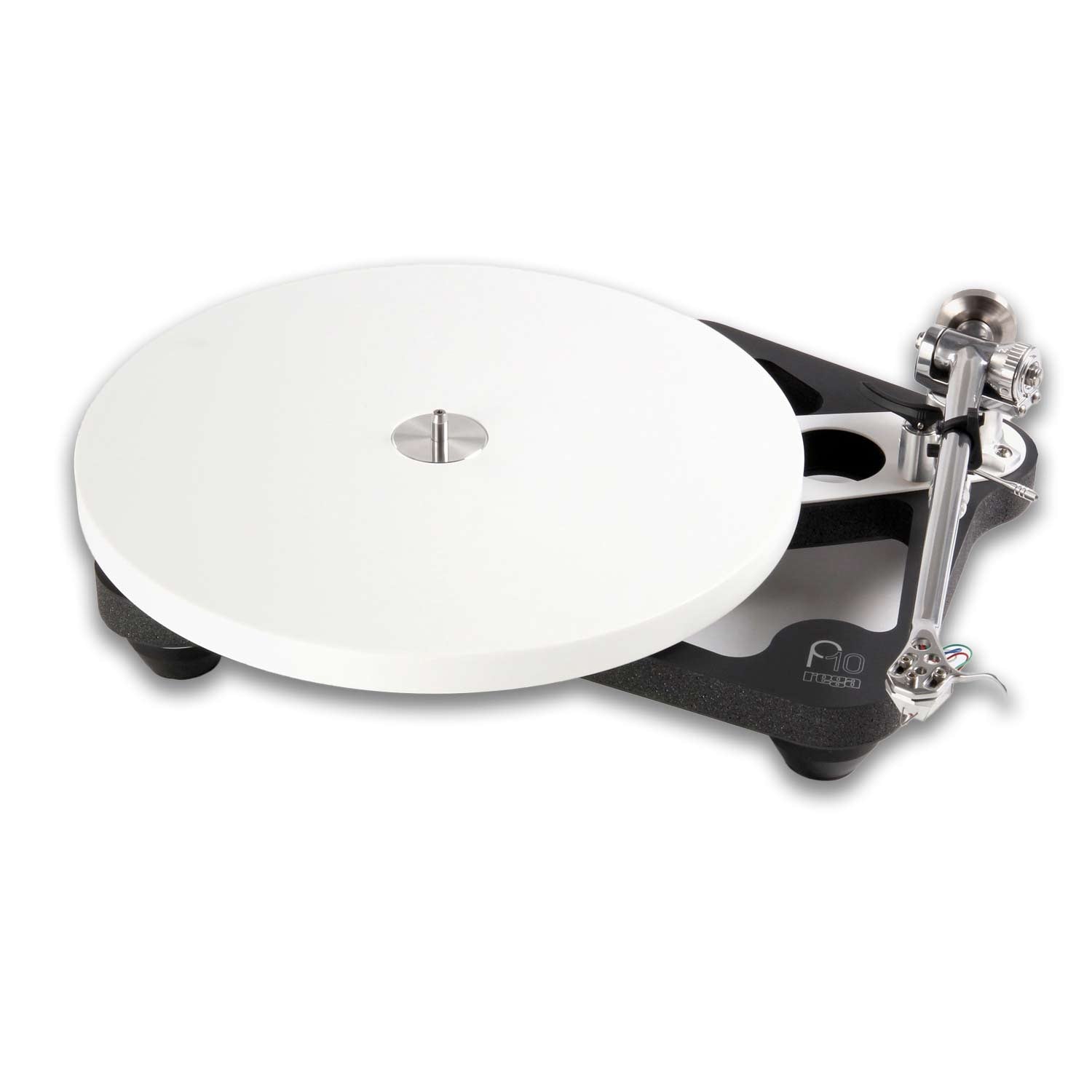

Matt Polaris Grey

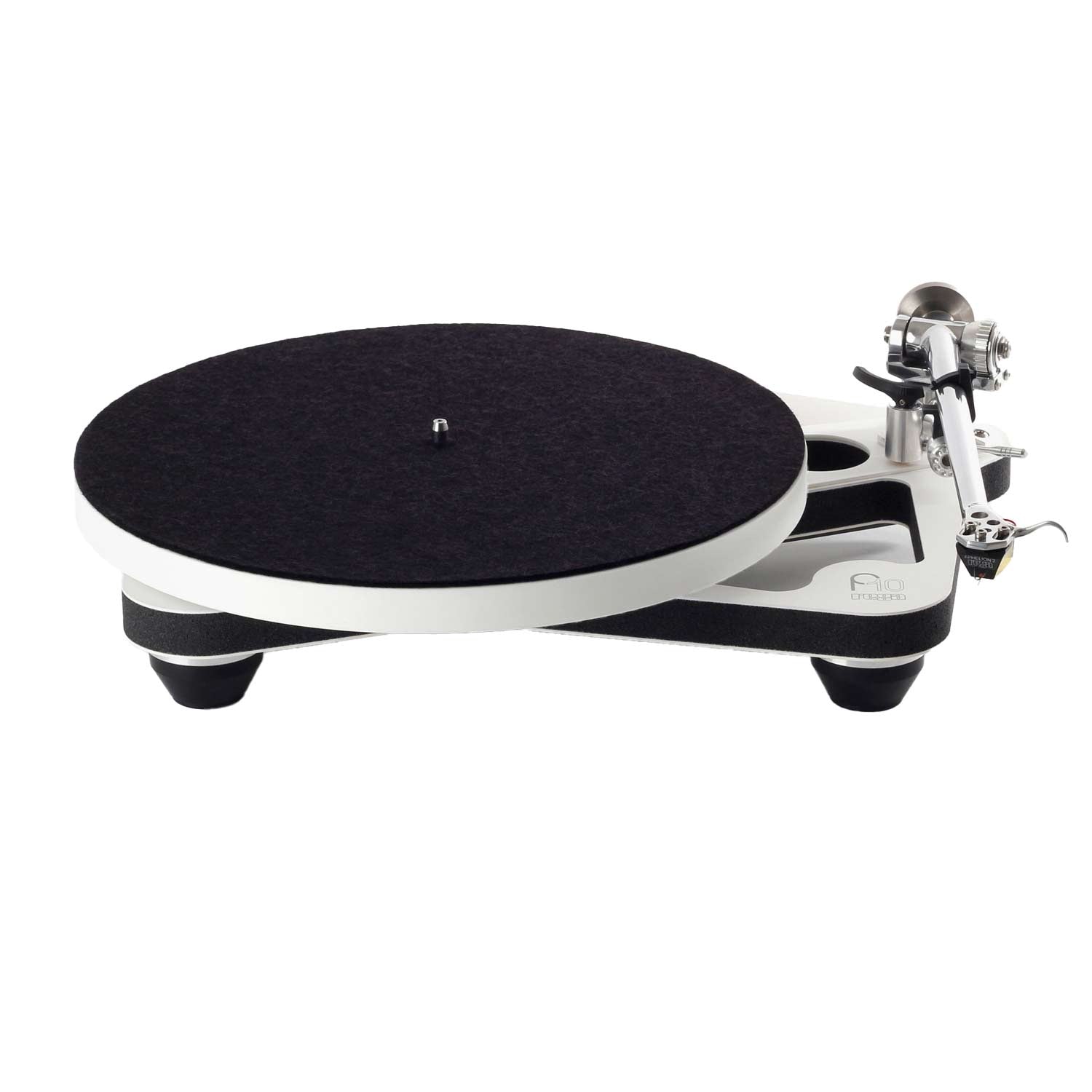

Matt White

Cartridge: No cartridge

No cartridge

Apheta3 MC

Aphelion2 MC

Product variants

The Planar 10 was inspired by the ultimate Rega turntable, the Naiad. Built around Rega's ultra-light skeletal plinth, constructed from Tancast 8 core and covered in a high-pressure laminate (HPL) skin. The Planar 10 is the first production turntable to use ceramic bracing which provides the ultimate rigid surface for mounting the precision reference RB3000 tonearm and custom central bearing assembly.

Availability

Ask a question

Specifications

Planar 10 Turntable Dimensions (W x H x D): 420 x 115 x 350 mm (with dust cover fitted)
P10 PSU Dimensions (W x H x D): 218 x 80 x 320 mm
Turntable Weight: 4.7 kg
P10 PSU Weight: 3 kg

Rega's new P10 is by far the company's most sophisticated, refined, quiet, and subtle-sounding turntable yet.

Stereophile

The heart of music

The Planar 10 is also fitted with a bespoke ceramic oxide platter which is diamond cut during manufacture for ultimate accuracy and speed stability. The Rega 24 V synchronous motor is controlled by our most advanced outboard power supply, the P10-PSU. This supply delivers the ultimate in motor vibration reduction, electronic fine speed adjustment and the convenience of electronic speed change. The Planar 10 is designed to deliver the ultimate in Rega performance by extracting more information from the vinyl groove than ever before.

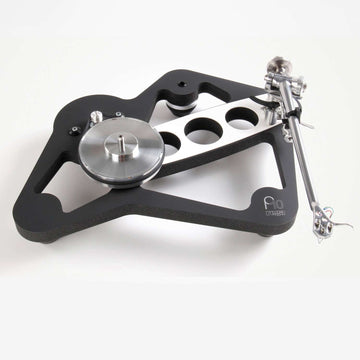

Ultra lightweight plinth

The Planar 10 is the third Rega turntable constructed using our latest technology the ultra-lightweight Tancast 8 polyurethane foam core (a material developed for the aerospace industry). This material is sandwiched between two layers of HPL (high-pressure laminate). HPL is exceptionally thin and extremely rigid.

This new construction makes the new Planar 10 skeletal plinth 30% lighter than the original RP10 while offering increased rigidity over the previous model.

Double brace technology

“Mass absorbs energy - lost energy equals lost music”! A super lightweight plinth combined with a ceramic top brace and phenolic resin bottom brace mounted specifically where the increased rigidity is required (between the tonearm mounting and the main hub bearing) forms a structurally sound, “stressed beam,” assembly.

This rigid plinth design prevents energy absorption and unwanted resonances which will add unnatural distortions to the music. Equally, heavier mass can transfer more unwanted energy such as motor or bearing noise directly into the rotating record. The tonearm and cartridge must be able to read accurately, directly from the platter. This unique Rega double brace solution enables this.

The use of braces instead of the complete skin allows increased thickness in these key areas while providing further weight reduction to the plinth which directly addresses the issue of mass absorption and unwanted energy transmission.

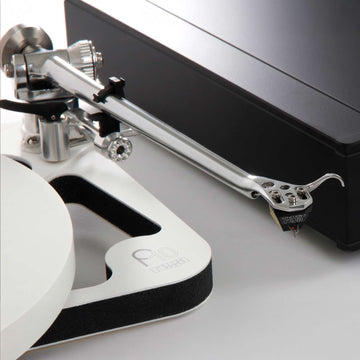

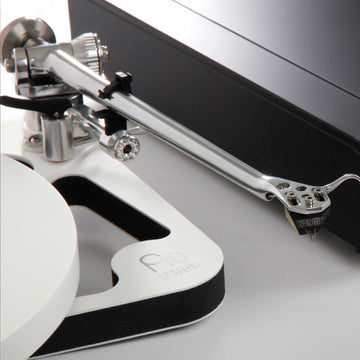

RB3000 Tonearm

Rega is renowned for the quality of its tonearm bearing assemblies. In particular the accurate manufacturing of our bearing housing and bearing spindles. Technical characteristics such as “roundness” and “parallelity” are critical.

The RB3000 also uses Rega's latest award-winning, aluminium, Rega arm tube (each one of which is meticulously hand polished, keeping mass to an absolute minimum) which was redesigned to redistribute mass and further reduce stresses and resonances. This advanced design tube increases the stiffness and rigidity of the overall assembly whilst reducing stress on the bearings even further.

Hub bearing assembly

The Planar 10 uses a new low mass central bearing assembly. A single piece machined aluminium sub-platter and hardened tool steel spindle run inside a custom brass housing designed with improved mechanical integrity. The complete assembly is cleverly mounted within the chassis to eradicate unwanted potential energy being transferred or stored in the plinth.

Ceramic platter

The P10 uses a custom ceramic, flywheel effect platter. The platter is produced from ceramic oxide powder which is compressed, fired and diamond cut to ensure perfect accuracy and flatness across the surface. The latest platter features a modified construction with improved coupling to the sub-platter.

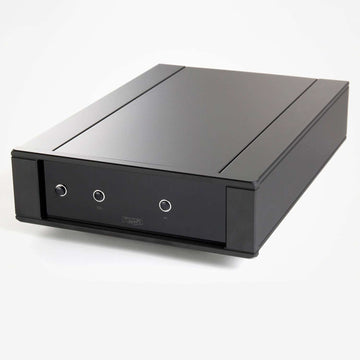

PL10 PSU

The PL10 PSU offers the ultimate in motor control stability, convenient electronic speed change, advanced anti-vibration control and user adjustable electronic fine speed adjustment to ensure total accuracy and control over the life of the motor.

Housed in Rega’s latest custom-designed case, the PL10 PSU is dedicated to running our 24v, low noise motor as quietly and as accurately as possible. The speed and control of the motor is achieved by using a new DSP (Digital Signal Processing) generator built upon a high stability crystal. This device will divide the accurate square wave from the crystal to the exact frequency required to turn the platter at the selected speed.

The DSP core will also generate a near perfect sinusoidal waveform to power the motor. Factory set vibration removal and fine speed adjustments are then made to the power supply to tune each motor for optimal performance.

Who is this for?

The Planar 10 is for the listener who wants the absolute best Rega can offer in a production turntable — a no-compromise statement of the company's engineering philosophy, with technology trickling down from the hand-built Naiad reference.

The ceramic brace, the substantially upgraded bearing assembly, and the precision-matched motor and power supply make this a different class of instrument from anything below it. It demands — and deserves — the finest partnering equipment: a top-tier moving coil cartridge, a dedicated high-performance phono stage, reference amplification, and a dedicated listening space where its capabilities can be fully realised.

This is not a first turntable, or even a second. It's the one you buy when you've stopped looking for the next upgrade and want to focus entirely on the music. A benchmark at its price that very few rivals from any manufacturer can honestly challenge.

What is the Rega Planar 10 Reference Turntable designed to do?

The Rega Planar 10 is Rega’s production flagship turntable, designed to deliver reference-level vinyl playback by extracting maximum musical information from the record groove with extremely low noise, vibration, and energy storage. It sits just below the Naia and represents the pinnacle of Rega’s standard production range.

What makes the Rega Planar 10 different from lower Rega models?

The Planar 10 uses a skeletal ultra-light plinth design with Tancast 8 foam core and HPL skins, combined with ceramic bracing and a precision bearing system inspired by the Naiad research platform. This approach prioritises rigidity and energy rejection rather than mass damping.

What tonearm does the Planar 10 use?

It is fitted with the Rega RB3000 tonearm, a reference-grade, one-piece aluminium arm designed for extreme rigidity, very low mass, and highly precise bearing movement. This helps improve tracking accuracy and micro-detail retrieval.

What platter and bearing system does it use?

The Planar 10 uses a high-precision ceramic oxide platter and a low-mass central bearing assembly engineered for stability, low friction, and consistent rotational accuracy over long-term use.

Does the Rega Planar 10 have an external power supply?

Yes. It uses the P10 DSP-controlled external power supply, which provides electronic speed control (33⅓ and 45 rpm), fine speed adjustment, and improved motor vibration isolation through digitally generated drive signals.

What type of motor does the Planar 10 use?

It uses a low-noise 24V synchronous AC motor, carefully tuned and isolated to reduce vibration transfer while maintaining extremely stable platter speed.

What makes the Planar 10’s plinth design important?

Instead of heavy mass, it uses a lightweight stressed-beam skeletal structure with ceramic bracing, designed to prevent energy storage. The goal is to eliminate resonance rather than absorb it.

What cartridge is typically used with the Planar 10?

It is commonly paired with high-end moving coil cartridges such as the Rega Apheta 3, with many systems also stepping up to the Aphelion 2 for maximum performance.

What type of sound does the Rega Planar 10 produce?

The Planar 10 delivers a fast, highly transparent, and exceptionally detailed sound, with outstanding timing, low noise floor, and excellent dynamic expression. It is known for revealing fine musical information without sounding mechanical.

How does the Planar 10 compare to the Planar 8?

The Planar 10 improves on the Planar 8 with higher-grade materials, ceramic structural bracing, a superior bearing system, and the RB3000 tonearm, resulting in greater resolution, stability, and refinement.

Is the Planar 10 difficult to set up?

It is more demanding than entry-level turntables due to its performance level, but once set up correctly, it is stable and requires minimal ongoing adjustment.

What kind of system does the Planar 10 require?

It is designed for high-end analogue systems, typically paired with reference MC phono stages (like Rega Aura), high-quality amplification, and revealing loudspeakers to fully realise its capability.

Does the Planar 10 prioritise musicality or technical detail?

It aims to balance both, but leans strongly toward high-resolution retrieval and timing accuracy, while still maintaining Rega’s signature musical flow and engagement.

Is the Planar 10 considered end-game equipment?

For many users, yes. It is widely regarded as a “destination” turntable in the Rega range, offering performance close to reference level without moving into fully bespoke platforms like the Naia.
