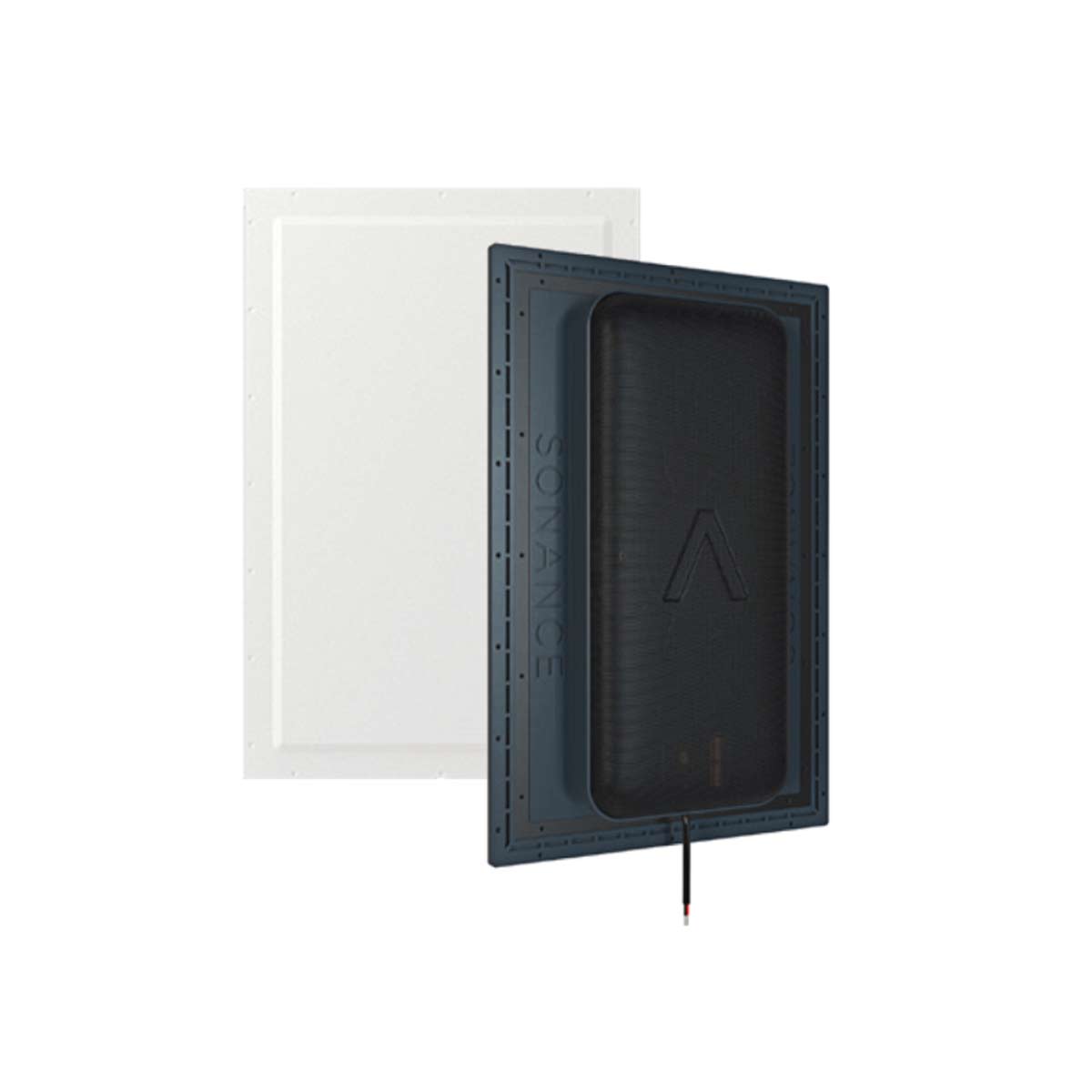

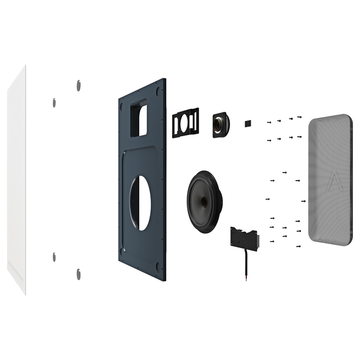

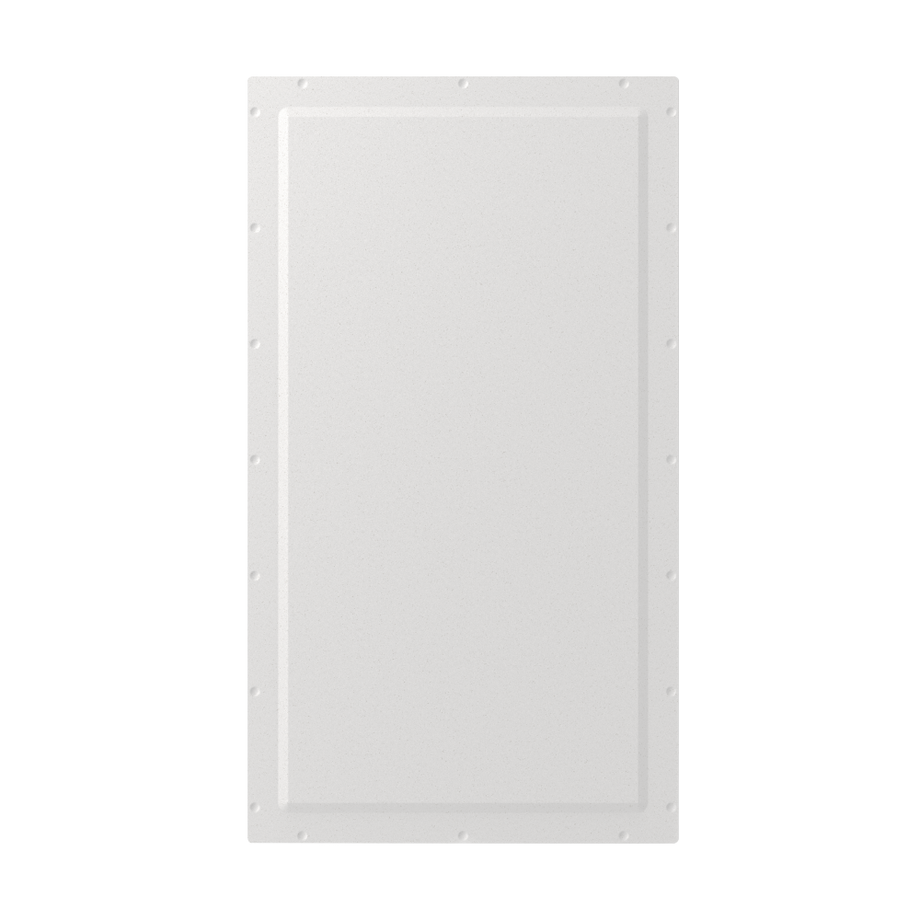

IS10W
Wave Flex Drive Unit: 29in^2 (188cm^2) bending wave diaphragm | 1.75in (44mm) voice coil
Air Flex Woofer: 244in^2 (1573cm^2) air pulse diaphragm, 10in (254mm) carbon fiber woofer
Frequency Response (+/- 3db): 35Hz - 30kHz
Power Handling (RMS): 200 watts RMS
Sensitivity: 87dB (2.83V/1m)
Nominal Impedance: 6 Ohms
Dispersion: 170 degree hemispherical
Dimensions (WxHxD): 408.94mm x 727.96mm x 80.01mm
Mounting Depth: 68.07mm

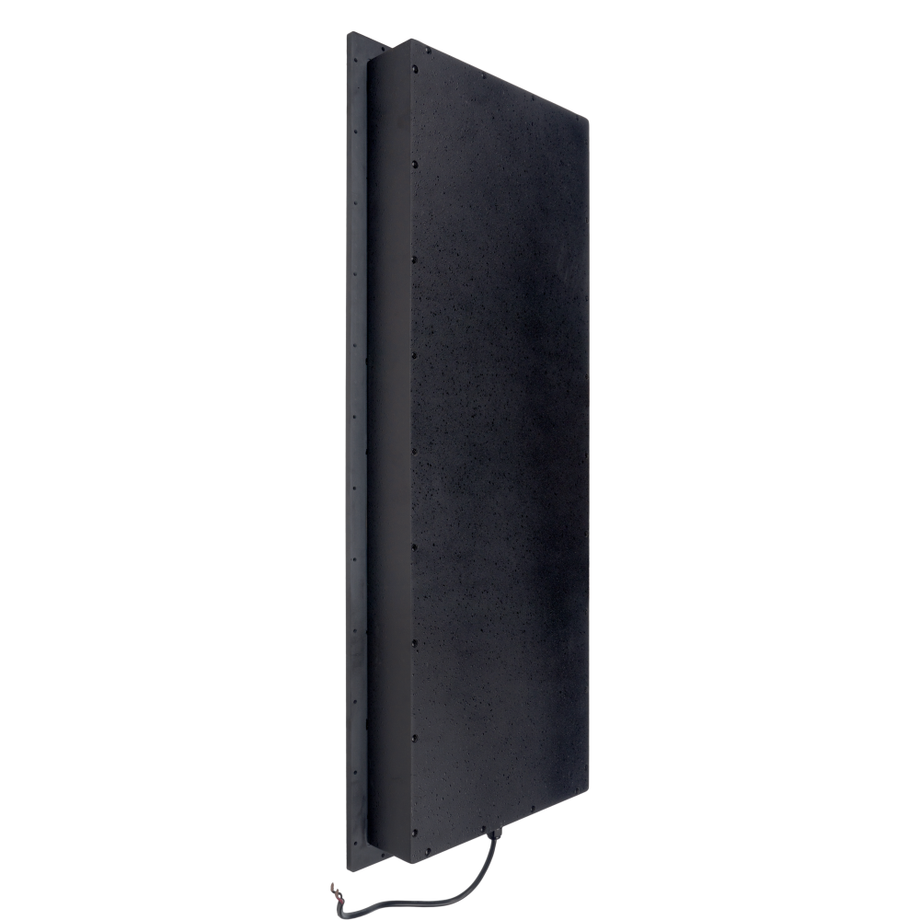

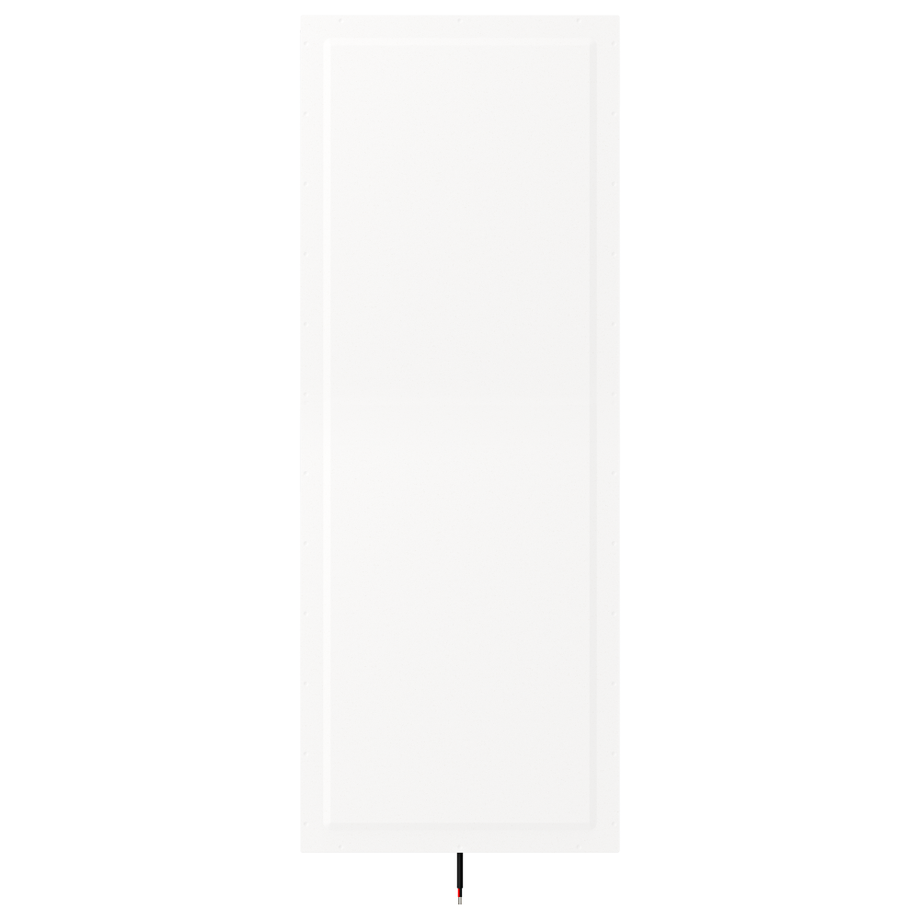

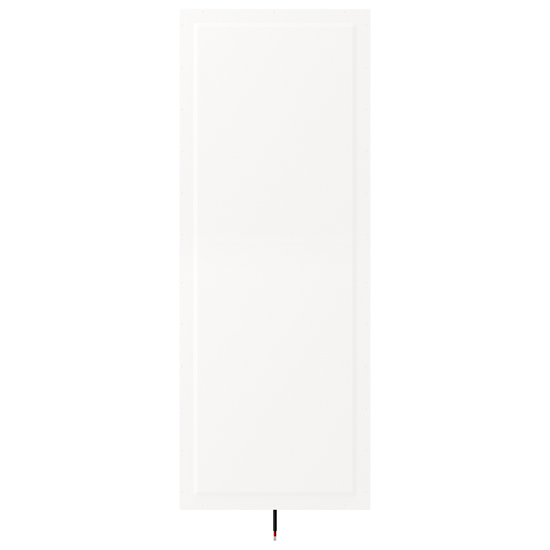

IS10-2W
Air Flex Woofer: 471in^2 (3039cm^2) air pulse diaphragm dual 10" (254mm) carbon fiber woofer
Frequency Response (+/- 3db): 32Hz - 250Hz
Sensitivity: 92dB (2.83V/1m)
Dispersion: 180 degree hemispherical up to 250Hz
Dimensions (WxHxD): 408.94mm x 1087.12mm x 98.04mm
Mounting Depth: 86.11mm
Weight: 17.05kg
