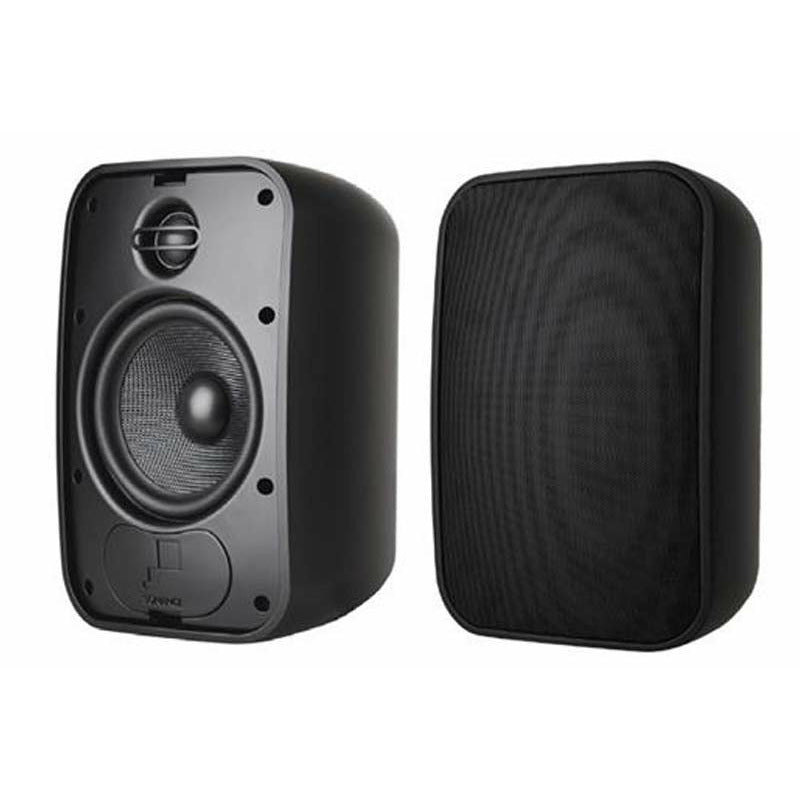

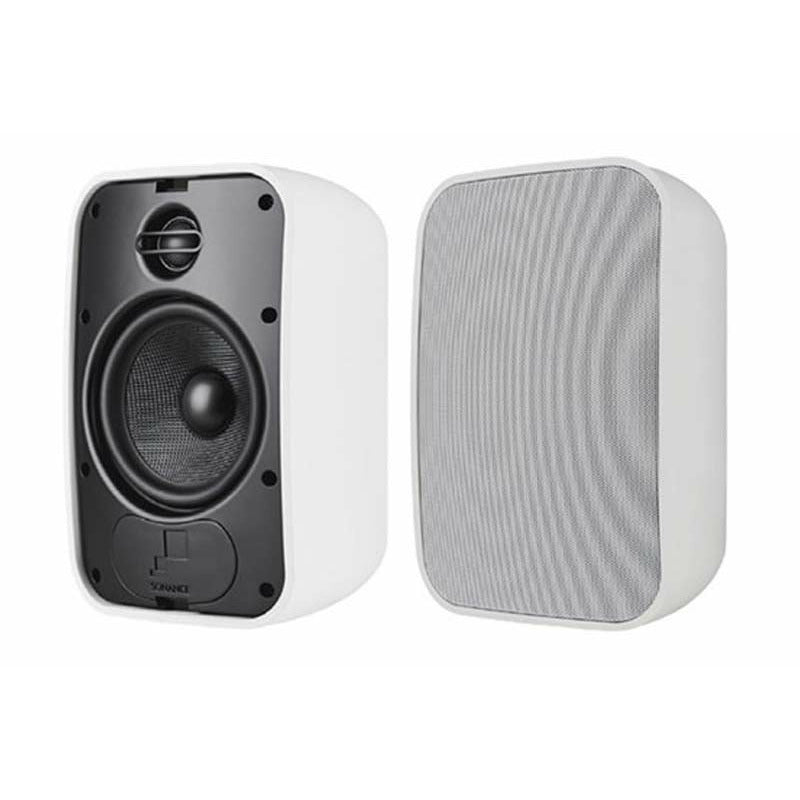

MX56
Speaker Tweeter: .75" (19mm) ceramic dome, Ferrofluid-cooled, acoustic back chamber
Speaker Woofer: 5.25" (130mm) Kevlar / Nomex cone, rubber surround
Frequency Response (+/- 3db): 60Hz - 40kHz
Power Handling (RMS): 5 watts minimum; 100 watts maximum
Sensitivity: 88dB (2.83V/1m)
Nominal Impedance: 8 Ohms
Dispersion: Sinusoidal Textured Waveguide
Dimensions (WxHxD): 161.54mm x 256.03mm x 144.27mm
Grille: Perforated Aluminum
Environmental: Mill Spec 810 for humidity, salt spray, temperature, UV
MX66
Speaker Tweeter: 1.0" (25mm) ceramic dome, Ferrofluid-cooled, acoustic back chamber
Speaker Woofer: 6.5" (165mm) Kevlar / Nomex cone, rubber surround
Frequency Response (+/- 3db): 50Hz - 20kHz
Power Handling (RMS): 5 watts minimum; 140 watts maximum
Sensitivity: 90dB (2.83V/1m)
Nominal Impedance: 8 Ohms
Dispersion: Sinusoidal Textured Waveguide
Dimensions (WxHxD): 190.75mm x 308.36mm x 174.24mm
Grille: Perforated Aluminum
Environmental: Mill Spec 810 for humidity, salt spray, temperature, UV
MX86
Speaker Tweeter: 1.2" (30mm) ceramic dome, Ferrofluid-cooled, acoustic back chamber
Speaker Woofer: 8" (203mm) Kevlar / Nomex cone, rubber surround
Frequency Response (+/- 3db): 45Hz - 20kHz
Power Handling (RMS): 5 watts minimum; 150 watts maximum
Sensitivity: 91dB (2.83V/1m)
Nominal Impedance: 8 Ohms
Dispersion: Sinusoidal Textured Waveguide
Dimensions (WxHxD): 228.85mm x 356.11mm x 217.93mm
Grille: Perforated Aluminum
Environmental: Mill Spec 810 for humidity, salt spray, temperature, UV
MX62SST
Speaker Tweeter: 1.0" (25mm) cloth dome, Ferrofluid-cooled, acoustic back chamber, dual voice coil
Speaker Woofer: 6.5" (165mm) textured polypropylene cone, rubber surround, dual voice coil
Frequency Response (+/- 3db): 55Hz - 20kHz
Power Handling (RMS): 5 watts minimum; 125 watts maximum
Sensitivity: 89dB (2.83V/1m)
Nominal Impedance: 8 Ohms
Dispersion: Sinusoidal Textured Waveguide
Dimensions (WxHxD): 190.75mm x 308.36mm x 174.24mm
Grille: Perforated Aluminum
Environmental: Mill Spec 810 for humidity, salt spray, temperature, UV
