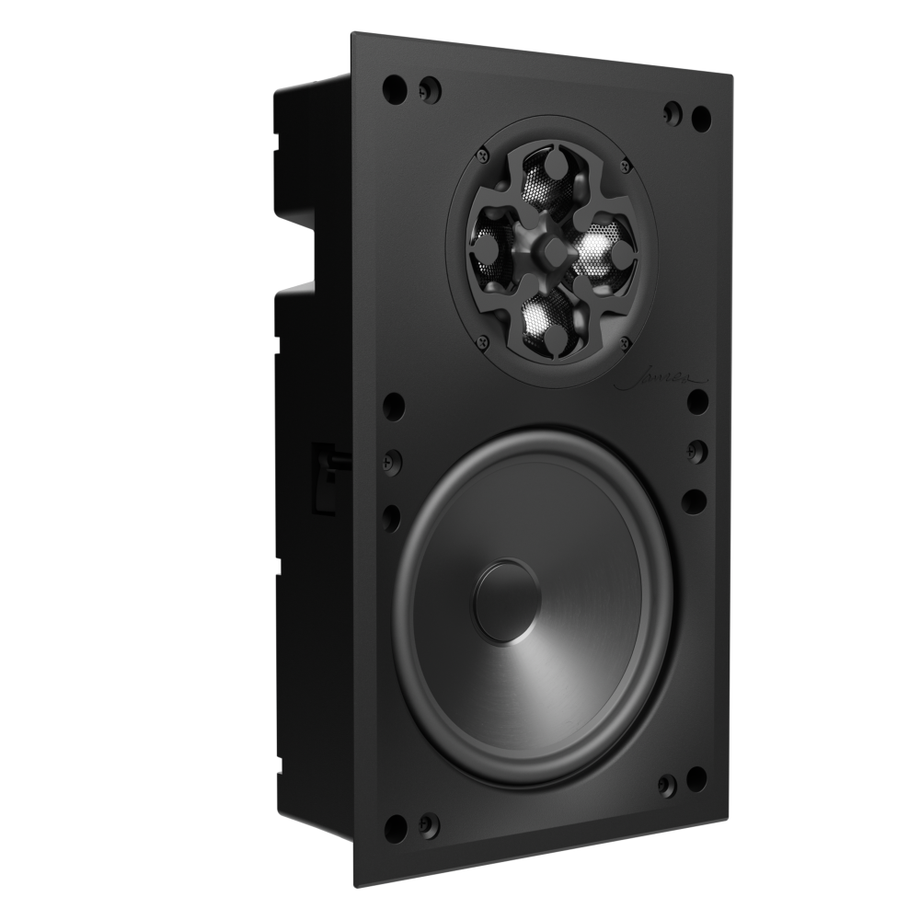

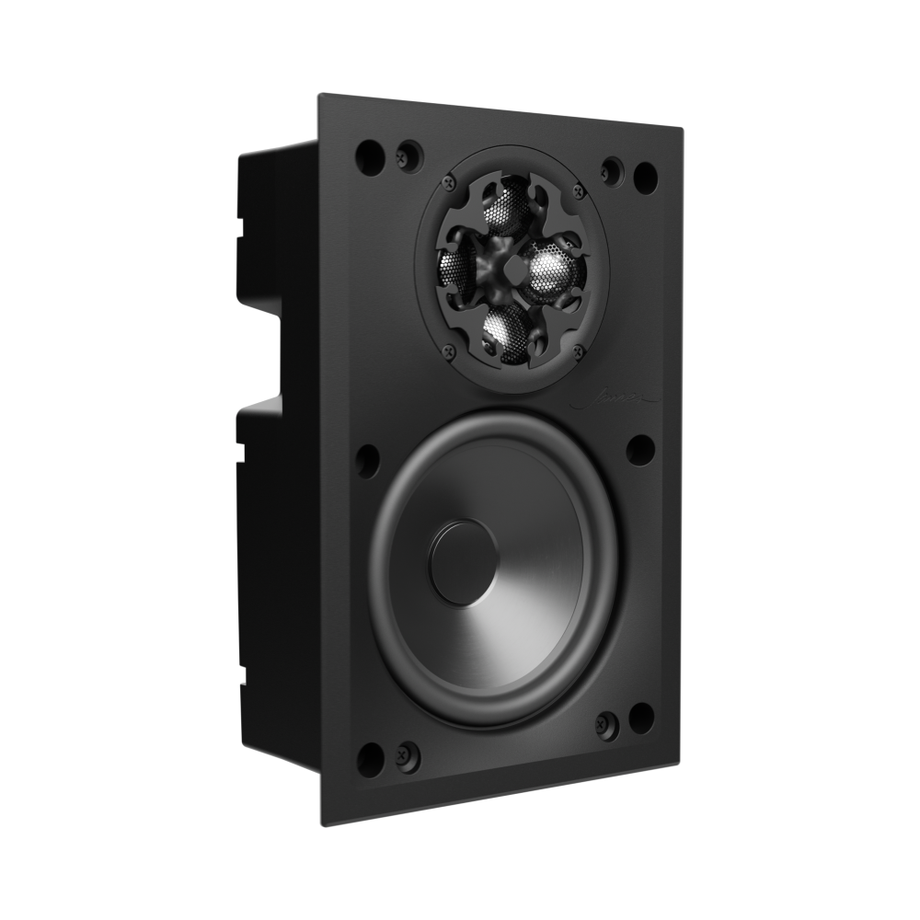

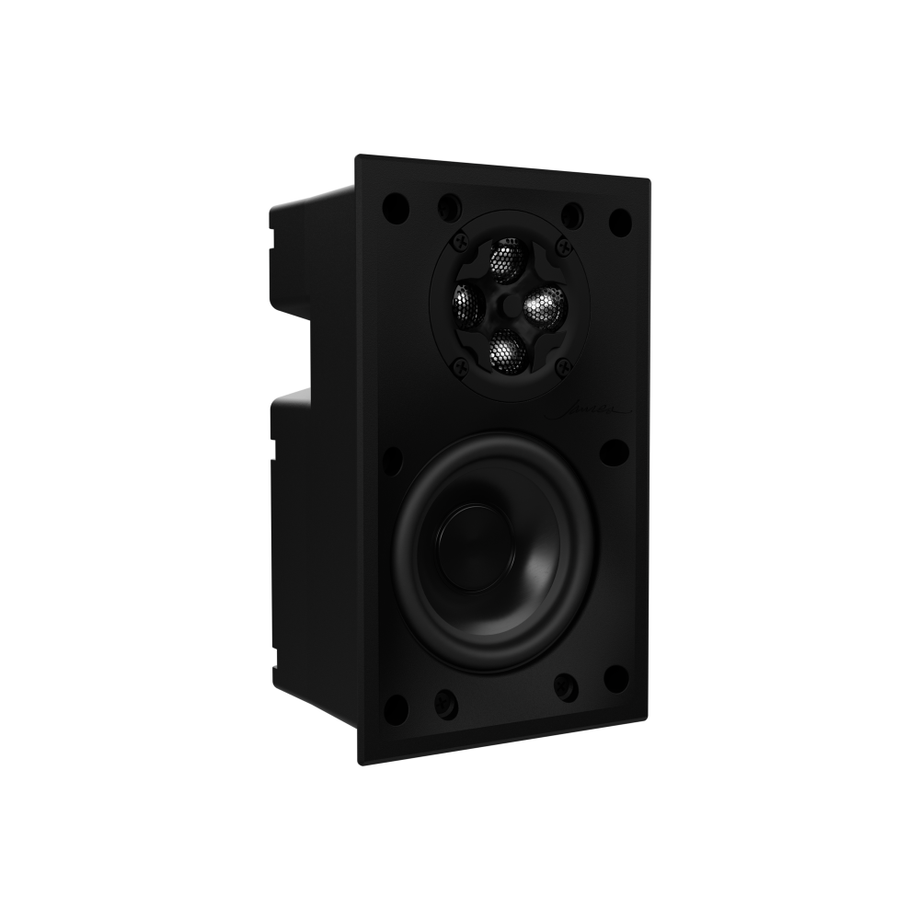

James Loudspeaker Visual Experience Level 3 Rectangle Wall Speakers

James Loudspeaker Visual Experience Level 3 Rectangle Wall Speakers

James Loudspeaker Visual Experience Level 3 Rectangle Wall Speakers

$1,049.00

Sold out

Size: Small - VXQ48

Small - VXQ48

Medium - VXQ68

Large - VXQ88

Product variants

James In-Wall Quadratech models are built for ultimate performance in surface mounted applications. Engineered leveraging iterative machine learning, the James Quadratech tweeter design provides superior dispersion and fidelity to optimize these On Wall models for music and entertainment applications. James On Wall Series is built-to-order for precision height/length to match the needs of the project, and ordered in any one of the 15+ standard colors at no additional cost.

Ask a question

Specifications

VXQ48

Speaker Tweeter: .50" (12mm) Four titanium domes, Ferrofluid-cooled, acoustic back chamber
Speaker Woofer: 4.5" (114mm) Aluminum cone, Santoprene surround
Frequency Response (+/- 3db): 50Hz - 20kHz
Power Handling (RMS): 5 watts minimum; 100 watts maximum
Sensitivity: 90dB (2.83V/1m)
Dispersion: Quadratech Tweeter with Cymatic Diffuser
Cut-Out Dimensions (WxH): 117.48mm x 203.2mm
Mounting Depth: 70.36mm

VXQ68

Speaker Tweeter: .75" (19mm) Four titanium domes, Ferrofluid-cooled, acoustic back chamber
Speaker Woofer: 6.5" (165mm) Aluminum cone, Santoprene surround
Frequency Response (+/- 3db): 40Hz - 20kHz
Power Handling (RMS): 5 watts minimum; 150 watts maximum
Sensitivity: 90dB (2.83V/1m)
Dispersion: Quadratech Tweeter with Cymatic Diffuser
Cut-Out Dimensions (WxH): 176.21mm x 273.05mm
Mounting Depth: 84.84mm

VXQ88

Speaker Tweeter: 1.0" (25mm) Four titanium domes, Ferrofluid-cooled, acoustic back chamber
Speaker Woofer: 8" (203mm) Aluminum cone, Santoprene surround
Frequency Response (+/- 3db): 30Hz - 20kHz
Power Handling (RMS): 5 watts minimum; 175 watts maximum
Sensitivity: 91dB (2.83V/1m)
Dispersion: Quadratech Tweeter with Cymatic Diffuser
Cut-Out Dimensions (WxH): 215.9mm x 368.3mm
Mounting Depth: 88.39mm

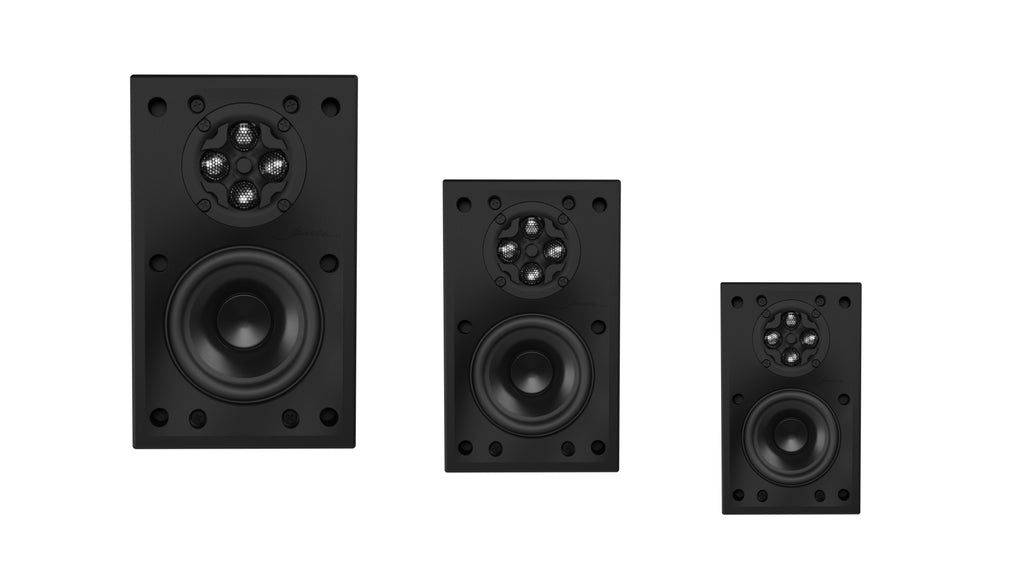

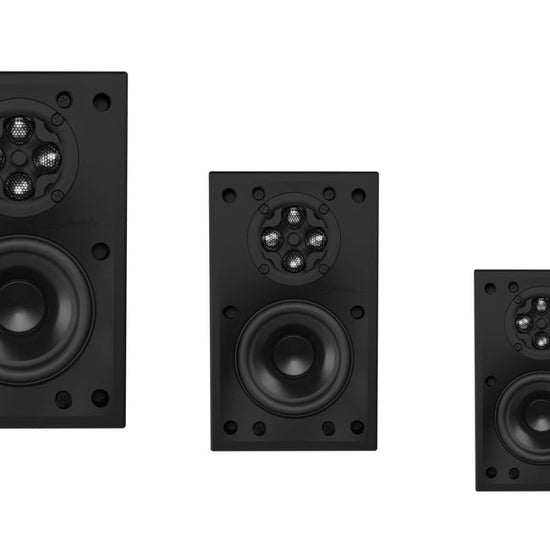

Visual Experience Series with Quadratech

James Visual Experience with Quadratech is the line of premium Visual Experience models engineered for superior fidelity and durability with seamless alignment with other Visual Experience models in the Series. Visual Experience with Quadratech features a uniquely engineered James Quadratech Tweeter and Cymatic Diffuser to create crisp details and exceptional dispersion. Each VXQ Quadratech Tweeter was designed using iterative machine learning to create the ideal experience for each speaker size, a customized feature unique to each. James VXQ models can be configured-to-order (ships from US warehouse only) for options for integrated back enclosure, grille trim style, and grille color. Grilles are available in micro trim or trimless, in 6 standard colors upon ordering at no additional cost. Enclosures can be integrated upon ordering for an additional charge.

QUADRATECH TWEETER QT MODELS Wide dispersion and crisp fidelity
BUILT-TO-ORDER Specify height/length, select low impedance or 70V/100V, standard or Marine Grade, and over 15 standard colors (custom colors available)
MARINE GRADE ALUMINUM Durable cabinet construction (for full marine-grade, specify when ordering)
RECESSED TERMINALS Protected wire connection and flush contact with surface.
