Sonance Visual Experience Level 2 Ceiling Speakers

Sonance Visual Experience Level 2 Ceiling Speakers

Sonance Visual Experience Level 2 Ceiling Speakers

$1,100.00

Sold out

Size: Small - VX46R (pair)

Small - VX46R (pair)

Medium - VX66R (pair)

Large - VX86R (pair)

Product variants

Sonance Visual Experience Series (VX) leverages four decades of speaker design and innovation success to inspire and reimagine speaker technology for the future. The first loudspeaker to be engineered by simulation and machine learning, the series features balanced coverage, low distortion, and smooth response for comfortable, natural sound reproduction.

Ask a question

Specifications

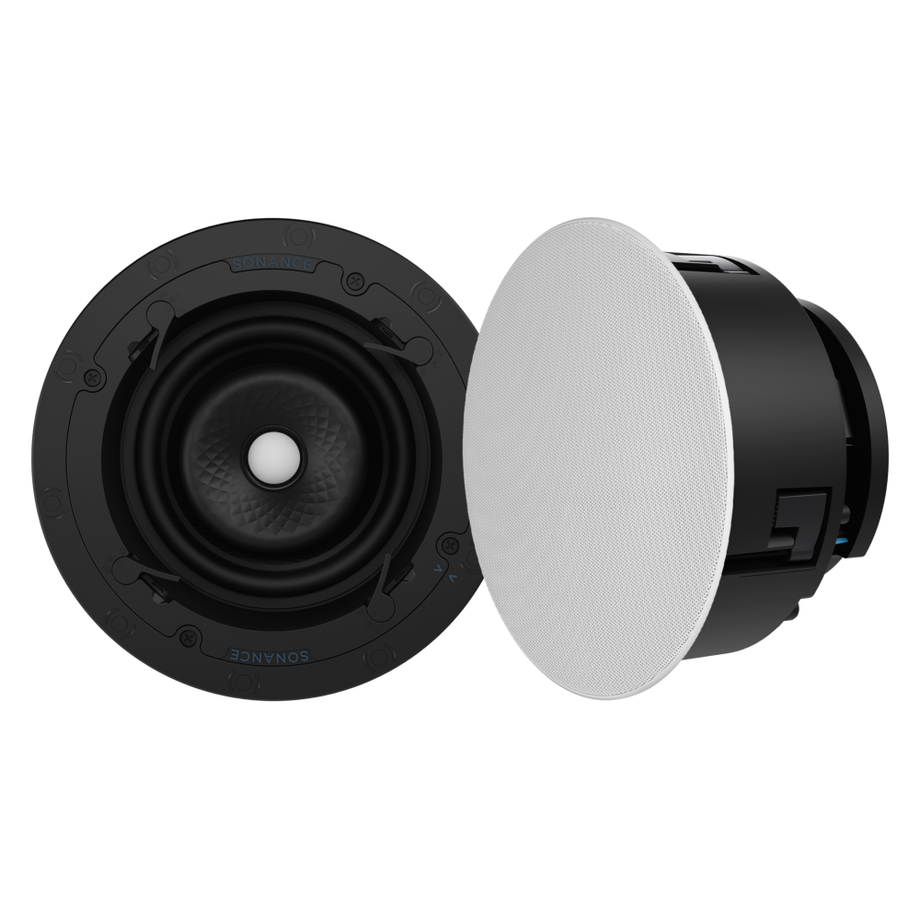

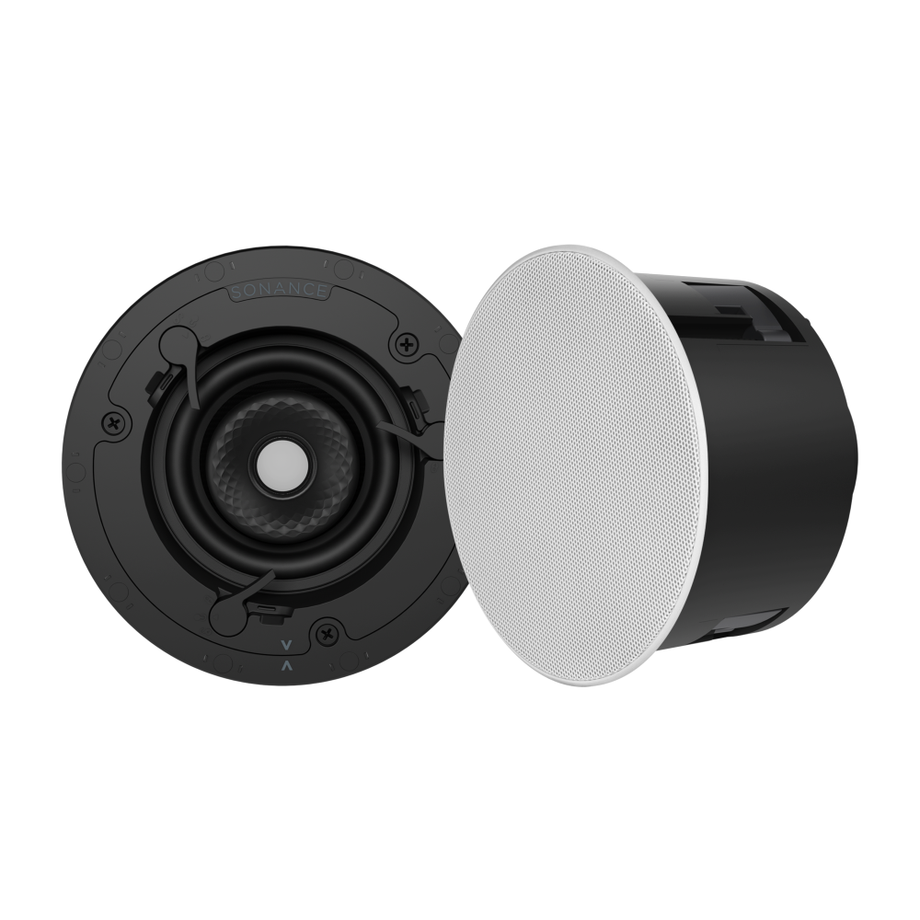

VX46R

Speaker Tweeter: .75" (19mm) ceramic dome, Ferrofluid-cooled, acoustic back chamber
Speaker Woofer: 4.5" (114mm) Kevlar / Nomex cone, rubber surround, pivoting
Frequency Response (+/- 3db): 58Hz - 20kHz
Power Handling (RMS): 5 watts minimum; 80 watts maximum
Sensitivity: 90dB (2.83V/1m)
Dispersion: Sinusoidal Textured Waveguide
Cut-Out Dimensions (Diameter): 149.23mm
Mounting Depth: 117.09mm

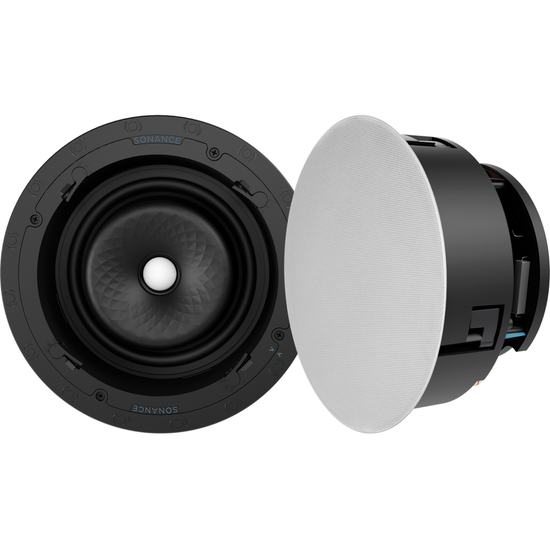

VX66R

Speaker Tweeter: 1.0" (25mm) ceramic dome, Ferrofluid-cooled, acoustic back chamber
Speaker Woofer: 6.5" (165mm) Kevlar / Nomex cone, rubber surround, pivoting
Frequency Response (+/- 3db): 43Hz - 20kHz
Power Handling (RMS): 5 watts minimum; 140 watts maximum
Sensitivity: 90dB (2.83V/1m)
Dispersion: Sinusoidal Textured Waveguide
Cut-Out Dimensions (Diameter): 209.55mm
Mounting Depth: 124.97mm

VX86R

Speaker Tweeter: 1.2" (30mm) ceramic dome, Ferrofluid-cooled, acoustic back chamber
Speaker Woofer: 8" (203mm) Kevlar / Nomex cone, rubber surround, pivoting
Frequency Response (+/- 3db): 34Hz - 20kHz
Power Handling (RMS):5 watts minimum; 150 watts maximum
Sensitivity: 91dB (2.83V/1m)
Dispersion: Sinusoidal Textured Waveguide
Cut-Out Dimensions (Diameter):157.18mm
Mounting Depth: 139.95mm

Available for In-Ceiling Round (with options for Round or Square trim) or In-Wall Rectangle

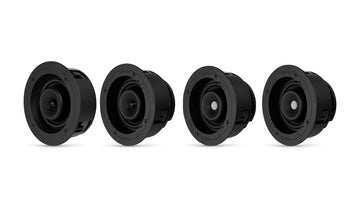

Available in Small, Medium, or Large (4.5", 6.5", or 8" driver)
Select from a range of performance options: Level 0, 2, 4, 6 or upgrade to our VXQ Level "8" Visual Experience with Quadratech (James VXQ)
Sonance CDX Crossover Design - Warmth and detail at all volumes
Waveguide Design - Engineered for maximum coverage and fidelity to create detailed, comfortable, consistent listening

Standard One Stage or Optional Two Stage Installation Design - Two stage process allows preconstruction wiring and space reservation that completes with a simple snap-in of the speaker module
Grille Options - Micro Trim, Trimless, or TRUFIG Mounted Trimless grille styles
Flexible Finish - Grille painting or laser printing grille service available
Optional TRUFIG Finish and Installation - Reliable, repeatable process for precision alignment and placement with smooth, level finish to blend into the surface
Limited Lifetime Warranty valid on Visual Experience Series products purchased from an authorized Sonance dealer or distributor (excludes grille and Extreme models which have a limited 5 Year Warranty)
